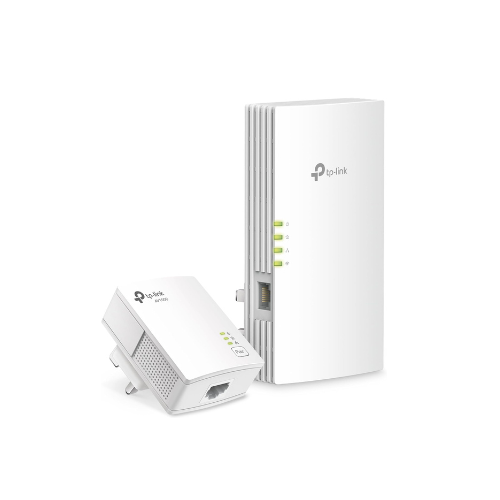

TP-Link TL-WPA7817 KIT AV1000 Gigabit Powerline AX1500 Wi-Fi 6 Kit
Key Features
Brand:TP-LINK
Hardware Interface Ethernet
Color White
Compatible Devices Desktop, Game Console, Internet Protocol Camera, Smart TV, Smartphone
Product Dimensions 3.07″L x 1.33″W x 5.87″H
Data Link Protocol WiFi
Data Transfer Rate 1000 megabits_per_second
Item Weight 8.8 ounces
Number of Packs 2
Unit Count 2 Count
FAST DELIVERY
1 Year Warranty
Ultimate Review of TP Link TL WPA7817 AV1000 WiFi Powerline Adapter Kit
The TP Link TL WPA7817 AV1000 WiFi Powerline Adapter Kit Twin Pack offers a high performance networking alternative for homes and small offices experiencing poor wireless coverage. This hardware kit uses existing electrical wiring to transmit high speed internet data through walls and floors without the need for drilling or complex ethernet cable installations. Here is a full analysis of this powerline kit to help maximize your network expansion.Â
Key Hardware Specifications
This twin pack is engineered to deliver stable dual media connectivity across residential electrical infrastructures.
-
- Powerline Speed: HomePlug AV2 standard delivering up to 1000 Mbps over electrical wires.
- Wireless Standards: AC1200 dual band WiFi providing 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.
- Physical Ports: Single Gigabit Ethernet port on each adapter for high speed wired devices.
- Operating Range: Up to 300 meters of electrical circuit length inside a building.
- Security Encryption: 128 bit AES encryption for secure powerline data transmission.
- Kit Components: One primary injector unit and one secondary WiFi broadcasting extender unit.Â
HomePlug AV2 Technology and Wired Performance
The foundational technology of this adapter kit is the HomePlug AV2 standard, which dramatically improves data transmission efficiency over home power lines
Unlike older generations of powerline equipment that suffered from extreme interference, the AV2 standard optimizes the electrical frequencies to maintain a stable, high speed connection. The inclusion of a true Gigabit Ethernet port ensures that the physical wire speed is not throttled, allowing users to connect gaming consoles, smart televisions, or desktop computers directly to the adapter for lag free performance.Â
Data moving through the electrical grid is secured with a physical pair button that activates 128 bit AES encryption, creating a secure network tunnel that cannot be accessed from outside the home circuit.
Ideal Deployment Use Cases
Multi Story Residential Homes
It bypasses thick concrete floors and insulation that block traditional wireless signals by carrying data through the walls.
Remote Home Offices
The adapter provides a dedicated, low latency Gigabit wired connection for desktop workstations far away from the main router.
Backyard Studios or Garages
It extends network access to detached rooms or outbuildings that share the same electrical breaker panel.
Seamless Integration and WiFi Features
The secondary unit functions as a high capability dual band AC1200 wireless access point, ensuring mobile devices receive a strong signal.
One Touch WiFi Cloning
Pressing the WPS button on your main router and the Wi-Fi clone button on the adapter automatically copies your existing network name and password. This eliminates the need to manually reconfigure laptops and smartphones to a new network.Â
Unified Mesh Networking
The kit works alongside compatible TP Link routers to create a seamless network environment, allowing users to move from room to room without experiencing sudden dropped connections or manual switching delays.
Installation Optimization Guidelines
For maximum data throughput, plug both powerline units directly into wall outlets rather than extension cords or surge protectors. Surge protectors contain filters that misinterpret network data packets as electrical noise, which severely degrades performance.
The plug and play architecture means the units detect each other immediately upon power up, requiring no initial software installation or technical background to complete the deployment.
