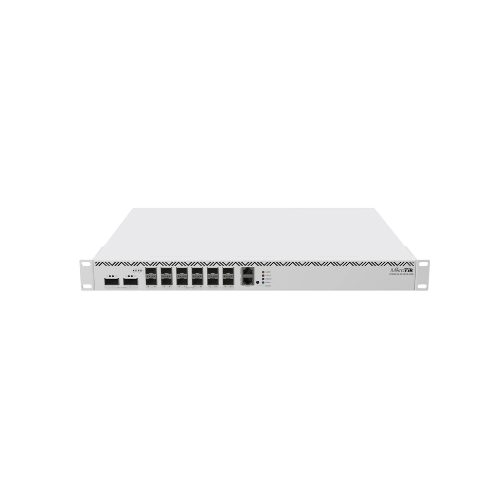

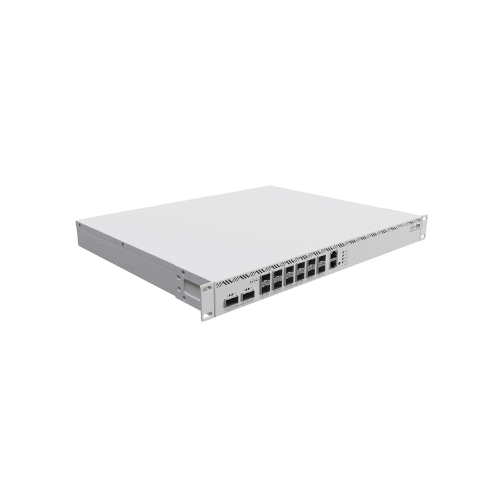

MikroTik 2216-1G-12XS-2XQ Cloud Core Router 16-core CPU, 2x 100G QSFP, 14x 25G SFP
Key Features
Brand:MikroTik
Architecture ARM 64bit
CPU AL73400
CPU core count 16
CPU nominal frequency 2000 MHz
Switch chip model 98DX8525
Dimensions 443 x 367 x 44 mm
RouterOS license 6
Operating System RouterOS (v7 only)
Size of RAM 16 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -20°C to 60°C
IPsec hardware acceleration Yes
FAST DELIVERY
1 Year Warranty
Ultimate Review of MikroTik CCR2216 1G 12XS 2XQ Cloud Core Router
The MikroTik CCR2216 1G 12XS 2XQ stands as the flagship enterprise networking solution for modern data centers and Internet Service Providers. This enterprise grade router combines a massive 16 core processor with cutting edge hardware offloading to handle heavy traffic demands effortlessly. Here is everything you need to know about this networking powerhouse to maximize your infrastructure performance.
Key Hardware Specifications
This Cloud Core Router is engineered for high density throughput and reliable failover operations.
- Core Processor: AL73400 16 core CPU running at 2 GHz per core.
- Memory Capacity: 16 GB DDR4 RAM for complex routing tables.
- High Speed Ports: Dual 100G QSFP28 interfaces for backbone connectivity.
- Aggregation Ports: Twelve 25G SFP28 interfaces for high speed downstream switches.
- Management Ports: Single Gigabit Ethernet port for dedicated out of band access.
- Power Supply: Dual redundant hot swappable power supplies ensure maximum uptime.
Performance and Hardware Offloading
The defining feature of this router is the inclusion of the Marvell Prestera Aldrin2 switch chip. This specialized hardware enables L3 Hardware Offloading, which changes how traffic is processed.
In traditional routers, the CPU handles every single packet, creating a bottleneck during peak traffic spikes. This model offloads routing decisions directly to the switch chip, allowing it to achieve wire speed performance without stressing the processor.
The 16 core CPU is freed up to manage advanced tasks such as complex firewall configurations, bandwidth shaping, traffic monitoring, and extensive BGP routing tables. This division of labor delivers exceptionally low latency and eliminates packet loss during massive data transfers.
Ideal Deployment Use Cases
Internet Service Providers
The router easily manages full BGP internet routing tables, enabling seamless traffic exchange at the network edge.
Data Centers
Dual 100G ports provide massive uplink capacity to eliminate network bottlenecks between storage clusters and computing nodes.
Enterprise Campus Networks
Twelve 25G ports offer high speed distribution links to core switches across large corporate infrastructures.
RouterOS v7 Advantages
Shipping with RouterOS v7, this device unlocks advanced software capabilities tailored for modern networking.
The updated kernel brings significant improvements to BGP routing speed and stability, allowing for near instant convergence times. It also supports advanced features like IPv6 wire speed routing, modern VPN protocols, and containerized applications directly on the router hardware.
Transitioning From Previous Models
Network administrators upgrading from older Cloud Core models will notice an immediate performance leap. The inclusion of 100G ports future proofs your network architecture for the next decade of data demands. The layout remains familiar, ensuring a smooth configuration migration process through the standard WinBox interface.
