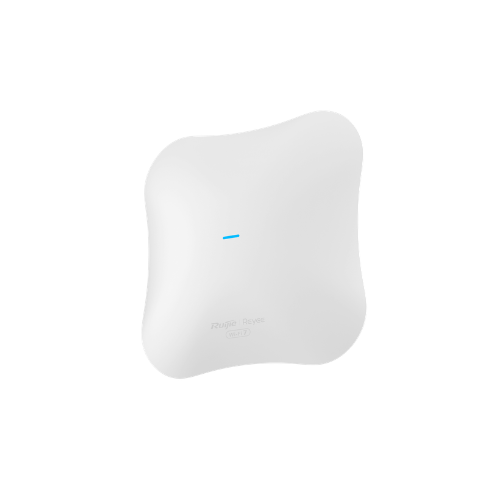

Ruijie RG-RAP72Pro Wi-Fi 7 Dual-Band Ceiling Access Point
Key Features
Brand:Ruijie
Next-generation performance with Wi-Fi 7, delivering extra-high wireless speeds
Superior streaming with Wi-Fi 7’s exclusive MLO feature
Compact design and easy installation
Enhanced data transmission with 4K-QAM for faster speeds
Wi-Fi7 BE5040 dual-band ceiling access point;2.4GHz/5GHz dual radio, high throughput with 5 spatial streams; 1 x
100/1000/2500BASE-T port;1 x 100/1000BASE-T port; Support AP
and routing mode. Unified networking and Ruijie Cloud APP
management. Maximum power consumption ＜ 30W; Support
802.3at PoE and 12V DC power supply“
FAST DELIVERY
Ultimate Review of Ruijie RG RAP72Pro Wi Fi 7 Dual Band Ceiling Access Point
The Ruijie RG RAP72Pro stands as a leading edge enterprise wireless deployment solution engineered for high density venues, modern corporate offices, and hospitality settings. This dual band ceiling mount access point leverages next generation Wi Fi 7 capabilities to eliminate radio frequency congestion and deliver multi gigabit wireless throughput. Here is everything you need to know about integrating this hardware asset into your modern network layout.
Key Hardware Specifications
This ceiling mounted system is designed to provide ultra fast data distribution and robust client handling.Â
- Wireless Standard: IEEE 802.11be Wi Fi 7 compliance with backwards compatibility.
- Maximum Data Rate: Combined throughput reaching up to 5011 Mbps BE5040.
- Band Allocation: Delivering 4323 Mbps on 5 GHz and 688 Mbps on 2.4 GHz.
- Spatial Streams: Advanced 5 spatial stream architecture using 3×3 MIMO on 5 GHz and 2×2 MIMO on 2.4 GHz.
- Uplink Interface: Single 2.5 Gigabit Ethernet port to prevent network backhaul bottlenecking.
- Secondary Interface: Single auxiliary Gigabit Ethernet port for downlinking wired hardware.
- Power Provisioning: Supports standard 802.3at PoE plus or an optional 12V DC input.
Wi Fi 7 Technical Features and Wireless Efficiency
The defining advancement of this access point is the transition into the Wi Fi 7 networking standard, which fundamentally changes data transmission mechanics.Â
Multi Link Operation
A major architectural breakthrough is Multi Link Operation. Traditional dual band access points force client devices to select either the 2.4 GHz or 5 GHz frequency band independently. This model allows compliant hardware to connect simultaneously across both radio frequencies, bonding the channels to achieve dramatic speed gains and near zero latency handoffs.Â
4K QAM Advanced Modulation
Data density is dramatically enhanced through the inclusion of 4K QAM technology. By condensing the digital modulation scheme, the access point packs more data into every single wireless transmission wave, resulting in a performance leap compared to the older generation modulation standards.Â
Ideal Deployment Use Cases
High Density Corporate Offices
The hardware efficiently supports up to 110 recommended concurrent client devices, making it perfect for crowded open floor workspaces and multi-user conference rooms.
Luxury Hospitality Environments
The elegant, low profile ceiling housing integrates seamlessly into hotel lobbies and corridors while delivering uninterrupted ultra high definition streaming to guests.
Educational Lecture Halls
The 2.5GE uplink port easily routes huge traffic loads generated by hundreds of student tablets, smartphones, and laptops operating in a single concentrated area.
Automated Cloud Management and Mesh Deployment
Network administrators can eliminate expensive local hardware controller costs by leveraging the free Reyee Cloud management platform
Initial provisioning is executed rapidly by scanning the hardware QR code using a mobile device, allowing for immediate remote project discovery and automated script distribution. The system actively monitors radio frequency interference to perform automated channel adjustments and power optimization without manual intervention.
The platform also supports smart Reyee Mesh technology and AI Roaming protocols. This optimization allows multi-AP installations to maintain a unified network name, ensuring moving users shift from one ceiling unit to another without encountering dropped video calls or authentication timeouts
Mechanical Installation and Structural Safety
The physical chassis features an IP41 dust and moisture protection rating, ensuring long term internal component reliability in standard indoor environments
The installation kit contains a heavy duty metal mounting backplate, a drill guide card, and secure anchoring screws suitable for drop ceilings or solid drywall surfaces. The access point slides firmly onto the plate and locks securely into place, requiring the inclusion of a specialized metal latch tool to remove the unit to prevent hardware tampering or theft in public corporate settings
