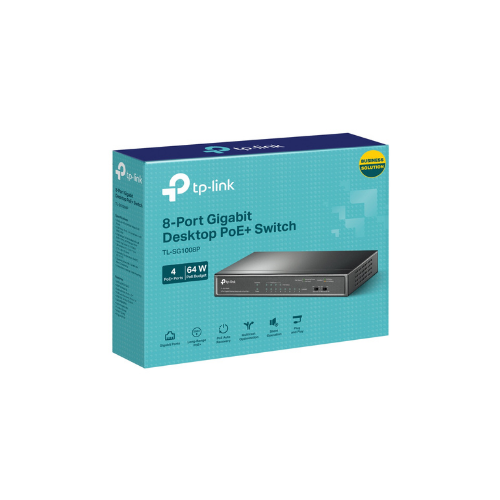

TP-Link TL-SG1008P 8-Port Gigabit Desktop Switch with 4-Port PoE+
The TP-Link TL-SG1008P 8-Port Gigabit Desktop Switch with 4-Port PoE+ is an enterprise-class, unmanaged networking solution engineered to provide high-speed data transmission and centralized electrical power delivery over a single Ethernet cable. Designed for small businesses, retail points of sale, and branch offices, this high-performance switch allows users to simplify infrastructure deployment for Power over Ethernet (PoE) devices like IP security cameras, wireless access points, and VoIP phones without requiring any software configuration.
Multi-Gigabit Performance and High-Yield PoE+ Delivery
The internal processing hardware focuses on rapid data distribution and efficient power allocation:
- Dual-Function Port Architecture: Features eight 10/100/1000 Mbps RJ45 ports, with ports 1 through 4 functioning as dedicated 802.3af/at PoE+ power injection nodes.
- High Power Capacity: Delivers up to 30 Watts of electrical power from a single PoE+ port, backed by a robust overall system power budget of 64 Watts to sustain multiple connected high-power peripherals.
- Zero Configuration Setup: As a fully unmanaged switch, it requires no IP addressing, VLAN partitioning, or administrative programming; devices begin communicating and drawing power immediately upon connection.
- Auto-Negotiation Smart Sensing: Each port independently detects the link speed of connected hardware (10, 100, or 1000 Mbps) and automatically determines if a device requires PoE power, shielding non-PoE machines from electrical damage.
- Non-Blocking Switching Fabric: Features a 16 Gbps switching capacity with full wire-speed packet forwarding, ensuring completely lag-free data streams and massive file transfers across the local area network.
Intelligent Hardware Protection and Traffic Optimization
The internal firmware incorporates automated monitoring and data prioritization safety guards:
- PoE Intelligent Power Management: If the total power draw of connected devices exceeds the 64-Watt system budget, the switch automatically cuts power to the lowest-priority port (Port 4) to safeguard the operating stability of the higher-priority lines.
- Advanced 802.1p/DSCP QoS: Automatically identifies and prioritizes latency-sensitive network data traffic such as voice over IP and real-time security video, preventing video stuttering and dropped calls during peak network congestion.
- IGMP Snooping Optimization: Optimizes multimedia stream distribution by automatically forwarding multicast data packets only to targeted client terminals, drastically reducing unnecessary network traffic loads.
Durable Steel Enclosure and Fanless Desktop Design
The physical layout is built to ensure long-term mechanical resilience across professional office environments:
- Industrial Steel Housing: Enclosed in a rugged, compact metal casing designed for efficient passive heat dissipation and enhanced hardware durability on desktops or shelving units.
- Fanless Quiet Operation: Engineered entirely without internal cooling fans, ensuring completely silent background operation in quiet office spaces or home study areas.
- Auto-MDI/MDIX Convenience: All eight ports support automatic crossover detection, eliminating the need for specialized crossover cables or dedicated uplink ports when connecting to another switch or router.
Technical Specifications
| System Feature | Technical Specification Blueprint |
|---|---|
| Model Designation | TL-SG1008P |
| Physical Interface Ports | 8 x 10/100/1000 Mbps RJ45 Ports (Ports 1–4 support 802.3af/at PoE+) |
| Network Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p |
| PoE Power Budget | 64 Watts Total Budget (Up to 30W per port) |
| Switching Capacity Fabric | 16 Gbps |
| MAC Address Table | 4K Entries with automated learning and aging |
| External Power Source | External Power Adapter (Output: 53.5V DC / 1.31A) |
| Physical Dimensions | 171 mm x 98 mm x 27 mm (Compact Desktop Profile) |
Frequently Asked Questions
Will I damage a regular desktop computer or laptop if I plug it into one of the 4 PoE+ ports?
No. The TL-SG1008P features intelligent auto-sensing technology. When a device is connected to a PoE port, the switch checks if the machine requires power. If you connect a standard non-PoE device like a laptop, the port will transmit data safely without sending electrical power.
No. The TL-SG1008P features intelligent auto-sensing technology. When a device is connected to a PoE port, the switch checks if the machine requires power. If you connect a standard non-PoE device like a laptop, the port will transmit data safely without sending electrical power.
What is the maximum cable distance supported for powering a device using this PoE switch?
Following standard Ethernet guidelines, the switch can deliver both Gigabit data and reliable PoE power over a distance of up to 100 meters (approximately 328 feet) using high-quality Category 5e or Category 6 copper cabling.
Following standard Ethernet guidelines, the switch can deliver both Gigabit data and reliable PoE power over a distance of up to 100 meters (approximately 328 feet) using high-quality Category 5e or Category 6 copper cabling.
