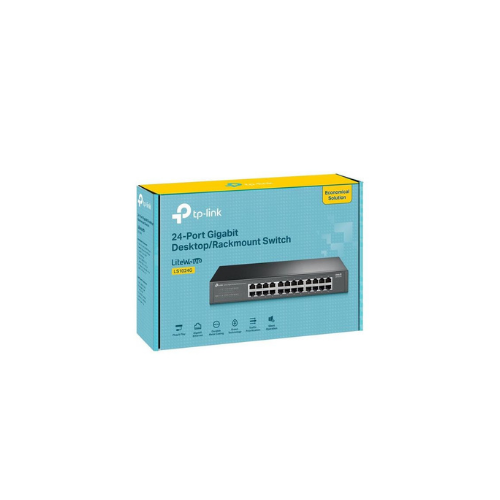

TP Link LS1024G 24-Port Gigabit Desktop/Rackmount Switch-
The TP-Link LS1024G LiteWave 24-Port Gigabit Desktop/Rackmount Switch is an enterprise-class, unmanaged networking solution engineered to expand local area networks with high-speed wire performance. Designed for growing small to medium businesses, server rooms, and creative editing studios, this energy-efficient switch allows users to instantly connect up to twenty-four wired network devices like high-end workstations, network-attached storage arrays, printers, and wireless access points without requiring any software configuration or management overhead.
Plug and Play Integration and Non-Blocking Gigabit Architecture
The hardware layout focuses on immediate workplace deployment and maximum data distribution efficiency:
- Zero Configuration Setup: As a fully unmanaged switch, it requires no IP addressing, VLAN partitioning, or administrative setup; devices begin communicating at full speed immediately upon connection.
- Auto-MDI/MDIX Technology: All twenty-four ports support automatic crossover detection, eliminating the need for specialized crossover cables or dedicated uplink ports when connecting to another switch or router.
- Auto-Negotiation Smart Sensing: Each port independently senses the link speed of the connected hardware (10, 100, or 1000 Mbps) and intelligently adjusts for maximum compatibility and performance.
- Massive Non-Blocking Capacity: Features a 48 Gbps switching fabric with a 4.1 Mb data buffer, allowing the switch to forward and filter packets at full wire speed for completely lag-free data transmission.
- 10K Jumbo Frame Support: Accommodates large data packets up to 10K, significantly improving network throughput efficiency during massive file transfers and database backups.
Green Ethernet Technology and Energy Efficiency
The internal circuitry incorporates smart power management features to lower operating costs and reduce environmental impact:
- TP-Link LiteWave Green Tech: Automatically adjusts electrical power consumption based on the link status and cable length of connected devices, minimizing power waste across the network.
- Power Conservation Rules: When a connected computer or server is turned off or idle, the corresponding port enters a low-power standby state rather than drawing continuous energy.
- Fanless Quiet Design: Built entirely without internal cooling fans, ensuring completely silent operation and reducing mechanical moving parts that can fail over time in office environments.
Durable Steel Enclosure and Versatile Form Factor
The physical chassis is optimized for rugged and flexible deployment across diverse workplace environments:
- Industrial Steel Housing: Enclosed in a sturdy, compact metal casing designed for efficient passive heat dissipation and long-term hardware durability.
- Flexible Placement Layout: Desktop-friendly dimensions allow for low-profile placement on office desks or shelving units, while included mounting ears allow for secure installation inside standard 19-inch networking racks.
- IEEE 802.3x Flow Control: Implements robust flow control mechanisms in full-duplex mode and backpressure in half-duplex mode to prevent data packet drops during peak network traffic congestion.
Technical Specifications
| System Feature | Technical Specification Blueprint |
|---|---|
| Model Designation | LS1024G / LiteWave Series |
| Physical Interface Ports | 24 x 10/100/1000 Mbps Auto-Negotiation RJ45 Ports |
| Network Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Switching Capacity Fabric | 48 Gbps |
| Packet Forwarding Rate | 35.7 Mpps |
| MAC Address Table | 8K Entries with automated learning and aging |
| Max Power Consumption | Low maximum draw of approximately 14.6 Watts |
| Internal Power Source | 100-240V AC, 50/60 Hz Universal Internal Power Supply |
| Physical Dimensions | 294 mm x 180 mm x 44 mm (Desktop or 19-inch Rackmount Width) |
Frequently Asked Questions
Does the LS1024G require any rack mounting equipment separately?
No. The LS1024G factory retail packaging includes standard 19-inch rack mounting brackets and screws. This allows you to securely mount it into a server cabinet or network rack immediately, as well as use it flat on a desktop with the included rubber feet.
No. The LS1024G factory retail packaging includes standard 19-inch rack mounting brackets and screws. This allows you to securely mount it into a server cabinet or network rack immediately, as well as use it flat on a desktop with the included rubber feet.
Is this switch suitable for streaming 4K video surveillance and high-capacity NAS environments?
Yes. Unlike 10/100Mbps switches, the full Gigabit capability (1000Mbps per port) provides ample bandwidth to handle simultaneous high-definition 4K camera streams and multi-gigabyte media edits from a Network Attached Storage system without causing local bottlenecks.
Yes. Unlike 10/100Mbps switches, the full Gigabit capability (1000Mbps per port) provides ample bandwidth to handle simultaneous high-definition 4K camera streams and multi-gigabyte media edits from a Network Attached Storage system without causing local bottlenecks.
