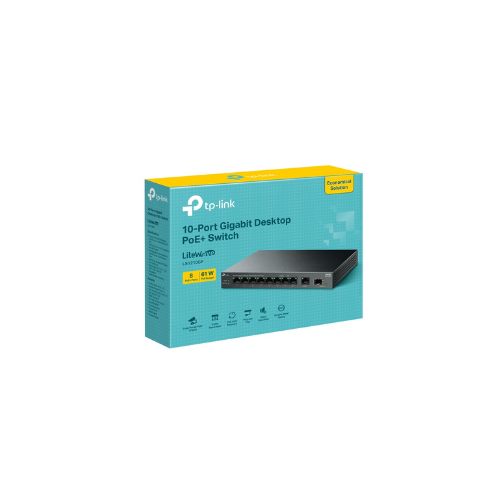

TP-Link TL-LS1210GP 10-Port Gigabit Desktop Switch – 8-Port PoE+ (63W)
The TP-Link TL-LS1210GP LiteWave 10-Port Gigabit Desktop Switch with 8-Port PoE+ is an enterprise-class, unmanaged networking solution engineered to deliver high-speed data transmission and centralized electrical power over a single network cable. Optimized for small businesses, office branches, and home surveillance architectures, this high-performance gateway simplifies infrastructure deployment for Power over Ethernet (PoE) devices such as IP security cameras, wireless access points, and VoIP terminals without requiring complex software configurations.
Multi-Gigabit Performance and High-Yield PoE+ Delivery
The internal processing hardware focuses on rapid data distribution and efficient power allocation:
- Dedicated PoE+ Ports: Features eight 10/100/1000 Mbps RJ45 ports that function as dedicated 802.3af/at PoE+ power injection nodes, alongside two additional non-PoE Gigabit uplink ports.
- High Power Capacity: Delivers up to 30 Watts of electrical power from a single PoE+ port, backed by a robust overall system power budget of 63 Watts to sustain multiple connected high-power peripherals.
- Dedicated Non-PoE Uplinks: The two additional Gigabit non-PoE ports provide dedicated backhaul lanes to connect to your primary router and local network-attached storage without wasting any valuable PoE ports.
- Zero Configuration Setup: As a fully unmanaged switch, it requires no IP addressing, VLAN partitioning, or administrative programming; devices begin communicating and drawing power immediately upon connection.
- Auto-Negotiation Smart Sensing: Each port independently detects the link speed of connected hardware (10, 100, or 1000 Mbps) and automatically determines if a device requires PoE power, shielding non-PoE machines from electrical damage.
Intelligent Hardware Protection and Signal Extension
The internal firmware incorporates automated monitoring and data prioritization safety guards to ensure network stability:
- PoE Intelligent Power Management: If the total power draw of connected devices exceeds the 63-Watt system budget, the switch automatically cuts power to the lowest-priority port to safeguard the operating stability of the higher-priority lines.
- Advanced 802.1p/DSCP QoS: Automatically identifies and prioritizes latency-sensitive network data traffic such as voice over IP and real-time security video, preventing video stuttering and dropped calls during peak network congestion.
- IGMP Snooping Optimization: Optimizes multimedia stream distribution by automatically forwarding multicast data packets only to targeted client terminals, drastically reducing unnecessary network traffic loads.
Durable Steel Enclosure and Fanless Desktop Design
The physical layout is built to ensure long-term mechanical resilience across professional office environments:
- Industrial Steel Housing: Enclosed in a rugged, compact metal casing designed for efficient passive heat dissipation and enhanced hardware durability on desktops or shelving units.
- Fanless Quiet Operation: Engineered entirely without internal cooling fans, ensuring completely silent background operation in quiet office spaces or home study areas.
- Auto-MDI/MDIX Convenience: All ports support automatic crossover detection, eliminating the need for specialized crossover cables or dedicated uplink ports when connecting to another switch or router.
Technical Specifications
| System Feature | Technical Specification Blueprint |
|---|---|
| Model Designation | TL-LS1210GP / LiteWave Series |
| Physical Interface Ports | 8 x Gigabit PoE+ Ports, 2 x Gigabit Non-PoE Uplink Ports |
| Network Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p |
| PoE Power Budget | 63 Watts Total Budget (Up to 30W per port) |
| Switching Capacity Fabric | 20 Gbps |
| MAC Address Table | 4K Entries with automated learning and aging |
| External Power Source | External Power Adapter (Output: 53.5V DC / 1.31A) |
| Physical Dimensions | 209 mm x 126 mm x 26 mm |
Frequently Asked Questions
Will I damage a regular desktop computer or laptop if I plug it into one of the 8 PoE+ ports?
No. The TL-LS1210GP features intelligent auto-sensing technology. When a device is connected to a PoE port, the switch checks if the machine requires power. If you connect a standard non-PoE device like a laptop, the port will transmit data safely without sending electrical power.
No. The TL-LS1210GP features intelligent auto-sensing technology. When a device is connected to a PoE port, the switch checks if the machine requires power. If you connect a standard non-PoE device like a laptop, the port will transmit data safely without sending electrical power.
What is the maximum cable distance supported for powering a device using this PoE switch?
Following standard Ethernet guidelines, the switch can deliver both Gigabit data and reliable PoE power over a distance of up to 100 meters (approximately 328 feet) using high-quality Category 5e or Category 6 copper cabling.
Following standard Ethernet guidelines, the switch can deliver both Gigabit data and reliable PoE power over a distance of up to 100 meters (approximately 328 feet) using high-quality Category 5e or Category 6 copper cabling.
