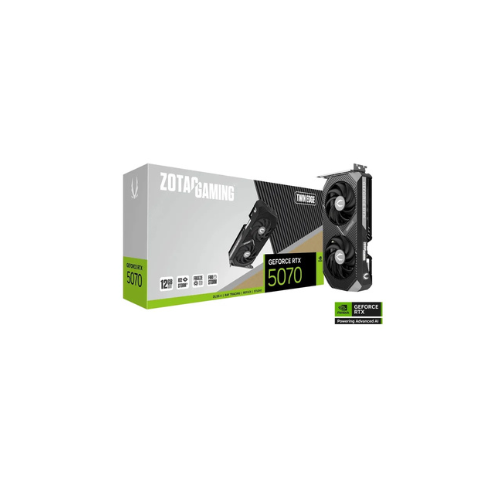

ZOTAC GAMING GeForce RTX 5070 Twin Edge 12GB GDDR7 Product Guide
Comprehensive Product Overview
The ZOTAC GAMING GeForce RTX 5070 Twin Edge 12GB GDDR7 is a next-generation high-performance graphics card built on NVIDIA cutting-edge Blackwell architecture. Engineered to serve as a massive graphical anchor for gaming rigs, AI local processing, and intensive content creation workflows, this card offers a distinct combination of ultra-fast speeds and small form factor construction. It bridges the gap between massive enthusiast performance and high spatial utility, making it an excellent choice for compact or mid-sized computer builds without sacrificing processing head-room.
The defining technological shift in this card is the integration of 12GB of GDDR7 video memory running on a 192-bit bus width, pushing memory speeds to an impressive 28 Gbps. This next-gen memory format delivers up to 672 GB/s of bandwidth, giving the system the raw data processing lanes required to easily stream massive 4K gaming textures and manipulate heavy 3D rendering data. Paired with NVIDIA revolutionary DLSS 4 technology, the card handles complex AI frame generation and deep neural network upscaling, maximizing frame rates and guaranteeing crisp fluid gameplay under severe graphical loads.
Thermal management is controlled via ZOTAC sophisticated IceStorm 2.0 dual-fan cooling system. This framework couples custom BladeLink aerodynamic fans with optimized internal heat pipes to maximize heat dissipation directly off the core silicon. Under low-load computing states, the system utilizes integrated FREEZE Fan Stop technology to halt the fans completely, ensuring silent desktop operation and extending mechanical longevity. The card is encased in a rigid protective metal backplate and designed to comply with NVIDIA strict SFF-Ready metrics, making it a reliable pillar for high-performance computing in space-constrained layouts.
Key Features
- Next-Gen Blackwell Processing: Powered by the advanced NVIDIA Blackwell architecture to maximize rendering speed and computing efficiency
- Ultra-Fast GDDR7 VRAM: Provides 12GB of cutting-edge GDDR7 memory for massive data bandwidth and flawless 1440p and 4K performance.
- DLSS 4 AI Scaling: Utilizes fifth-generation Tensor Cores and advanced frame generation to multiply FPS while maintaining high image fidelity.
- SFF-Ready Enclosure: Compact dual-slot and dual-fan design optimized to slide into small form factor configurations and standard mid-tower setups.
- IceStorm 2.0 Cooling: Advanced thermal framework designed to control high temperatures through heavy workloads while maintaining quiet performance. [
- DirectX 12 Ultimate Integration: Supports real-time ray tracing, variable rate shading, and mesh shaders to enable true-to-life gaming reflections and lighting mechanics.
- Future-Proof Connectivity: Features high-bandwidth display paths capable of pushing 4K and 8K resolution display profiles across multiple monitors simultaneously.
Technical Specifications
| System Feature | Specification Details |
|---|---|
| Model Designation | ZT-B50700E-10P |
| GPU Architecture | NVIDIA Blackwell |
| CUDA Core Count | 6144 Cores |
| Video Memory Array | 12GB GDDR7 |
| Memory Bus Interface | 192-bit |
| Core Clock Speeds | 2160 MHz Base / 2512 MHz Boost |
| System Interface Bus | PCI Express 5.0 x16 |
| Display Connectivity | 3 x DisplayPort 2.1b, 1 x HDMI 2.1b (Up to 4 displays) |
| Power Connector Type | 1 x 12V-2×6 Power Interface |
| Power Requirements | 250W Consumption / 650W Minimum Recommended PSU |
High-Utility Operation Capabilities
- Local AI Acceleration: Outfitted with fifth-generation Tensor Cores to process complex localized Large Language Models (LLMs) and advanced AI photo/video editing datasets with rapid response times.
- Advanced Ray Tracing performance: Employs fourth-generation RT Cores to handle intensive real-time lighting calculations without tanking standard base frame rates.
- FireStorm Utility Control: Links directly with ZOTAC dedicated tuning software, giving users precise control over core clocks, thermal fan curves, and real-time status diagnostics.
Frequently Asked Questions
Does this graphics card require a specialized power cable?
Yes. The card utilizes the modern 12V-2×6 power interface. If your current power supply does not feature a native ATX 3.1 PCIe 5.0 cable layout, you will need to utilize an approved adapter cable to bridge standard 8-pin PCIe power feeds to the new connector.
What is the advantage of GDDR7 memory over older GDDR6 formats?
GDDR7 memory uses an advanced signaling mechanism that drastically increases overall bandwidth to 672 GB/s while maintaining high energy efficiency. This structural change prevents processing bottlenecks when buffering highly complex asset files or modern high-resolution gaming environments.
Will this card fit into an ITX mini gaming case?
Yes. It features a compact Twin Edge dual-slot profile and complies with NVIDIA strict SFF-Ready guidelines. It is specifically engineered to fit comfortably into tight spaces that cannot accept oversized triple-fan enthusiast hardware configurations
