PNY GeForce RTX 5070 ARGB EPIC-X RGB OC 12GB GDDR7 Product Guide
Comprehensive Product Overview

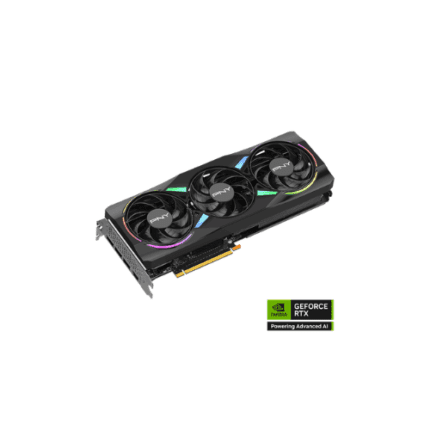

The PNY GeForce RTX 5070 ARGB EPIC-X RGB OC 12GB GDDR7 (Model: VCG507012TFXXPB1-O) is a high-tier desktop graphics card engineered on NVIDIA next-generation Blackwell architecture. Factory overclocked out of the box, this unit provides exceptional rendering performance, heavy local AI computation capability, and elite fluid frame rates for modern enthusiast gaming. It serves as a formidable processing component for rendering workstations and high-refresh-rate 1440p or 4K gaming configurations. [1, 2, 3, 4, 5]
This card features 12GB of cutting-edge GDDR7 video memory built on a 192-bit interface bus. Operating at an ultra-fast effective speed of 28 Gbps, it delivers up to 672 GB/s of absolute memory bandwidth. This massive data pipeline eliminates traditional buffering bottlenecks, allowing real-time processing of complex virtual geometry and ultra-high-definition resource files. Enhanced by NVIDIA fourth-generation Ray Tracing Cores and fifth-generation Tensor Cores, it natively unlocks advanced DLSS 4 AI frame generation and neural network visual upscaling to push frame rates far beyond mechanical rasterization limits.
Thermal stability is maintained by PNY advanced EPIC-X RGB Triple Fan air-cooling infrastructure. This system utilizes three synchronized aerodynamic fans paired with a dense copper heat pipe network to pull thermal loads rapidly away from the core processing silicon. The card features customizable ARGB lighting integrated directly into the shroud layout, giving users deep control over visual profiles via standard desktop ecosystem sync tools. Encased in a protective structural metal backplate, it delivers physical stiffness alongside silent, premium heat management during long, continuous processing runs
Key Features
- Blackwell Architecture Power: Built on the latest NVIDIA Blackwell microarchitecture to maximize overall processing output and power efficiency.
- Next-Gen GDDR7 VRAM: Incorporates 12GB of ultra-fast GDDR7 memory to handle massive texture streaming and complex 3D scenes flawlessly.
- Factory Overclocked (OC): Tuned at the factory to deliver elevated engine clock speeds and superior out-of-the-box frame rates.
- Customizable ARGB Epic-X: Vibrant integrated shroud lighting allowing customizable aesthetic alignment through various desktop control software options.
- Triple-Fan Thermal Control: High-efficiency triple fan layout designed to maintain cool operating limits during intense gameplay or heavy rendering loads.
- DLSS 4 AI Rendering: Harnesses fifth-generation Tensor Cores to process deep-learning frame generation and maximize fluid visual output.
- DisplayPort 2.1b Integration: Outfitted with premium display outputs capable of driving modern high-refresh 4K and 8K display fields natively
Technical Specifications
| System Feature | Specification Details |
|---|---|
| Model Code Number | VCG507012TFXXPB1-O |
| Graphics Core Engine | NVIDIA GeForce RTX 5070 |
| Processor Architecture | NVIDIA Blackwell |
| CUDA Stream Cores | 6,144 Units |
| Video Memory Footprint | 12GB GDDR7 |
| Memory Bus Width | 192-bit |
| Memory Lane Bandwidth | Up to 672 GB/sec |
| System Connection Bus | PCI-Express 5.0 x16 |
| Display Outputs | 3 x DisplayPort 2.1b, 1 x HDMI 2.1b (Up to 4 screens) |
| Physical Card Form Factor | 2.4-Slot Design (Length: 299.5 mm) |
| Power Consumption (TDP) | 250 Watts |
| System Power Requirement | 600W to 650W Recommended PSU |
High-Utility Operation Capabilities
- Local Artificial Intelligence Acceleration: Employs its onboard 6144 CUDA cores and specialized Tensor matrices to accelerate localized generative text tools, stable diffusion models, and complex coding workflows.
- Immersive Ray Tracing Performance: Fully processes advanced path-traced lighting pipelines natively, calculating real-time mirrors, shadows, and true global illumination without tanking target system performance.
- PNY VelocityX Optimization Control: Connects with PNY proprietary hardware utilities, giving builders granular tracking over core engine speeds, custom fan velocity configurations, and localized thermal diagnostics.
Frequently Asked Questions
What type of internal power connection does this graphics card use?
The card utilizes the modern 16-pin power interface. For setups utilizing older power supply standards, PNY includes a multi-cable adapter accessory inside the retail packaging to safely bridge classic 8-pin PCIe power cables to the high-power input.
Will this triple-fan graphics card fit inside standard mid-tower computer cases?
The physical dimensions of the card span 299.5 mm in length and 120 mm in width with a 2.4-slot thickness profile. It fits comfortably inside the vast majority of standard ATX and micro-ATX mid-tower chassis, but checking your case internal clearance parameters before deployment is recommended.
Does the ARGB EPIC-X lighting system require standalone software tools?
No, the integrated lighting complies with universal ARGB signal communication pathways. It can link directly into your motherboard’s native ecosystem header, allowing you to synchronize your entire system aesthetic using your choice of existing hardware control suites
