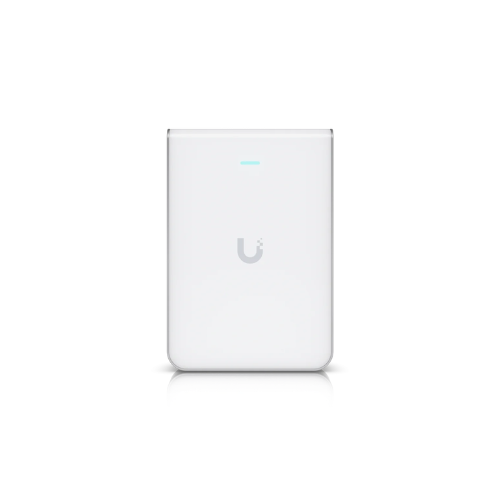

Ubiquiti UniFi U7 Pro Wall WiFi 7 Access Point (U7-Pro-Wall)
KEY FEATURES
WiFi 7 wireless technology
Wall-mounted access point design
Tri-band wireless connectivity
2.4 GHz, 5 GHz, and 6 GHz bands
High-speed wireless performance
Designed for wall installation
2.5 GbE uplink
PoE-powered deployment
Supports multiple wireless clients
Suitable for high-density environments
Centralized UniFi network management
Supports modern WiFi 7 devices
Compatible with earlier WiFi generations
FAST DELIVERY
Ubiquiti UniFi U7 Pro Wall Review: Ultimate WiFi 7 Wall Access Point
The Ubiquiti UniFi U7 Pro Wall WiFi 7 Access Point (U7-Pro-Wall) represents a massive leap forward in enterprise and premium residential wireless networking. By combining the cutting-edge speed of WiFi 7 with a discreet, flush-fitting wall design, Ubiquiti offers an ideal solution for high-density environments like offices, hotels, and smart homes requiring exceptional bandwidth. This comprehensive guide covers the technical specifications, key features, and installation benefits of the U7 Pro Wall.
Technical Overview of the U7 Pro Wall
The U7 Pro Wall operates as a tri-band access point utilizing the 2.4 GHz, 5 GHz, and 6 GHz frequency bands. It is specifically engineered to handle dense traffic by leveraging six spatial streams alongside Multi-User MIMO (MU-MIMO) technology across all bands.
Performance and Throughput Breakdowns
- 6 GHz Band:Delivers speeds up to 5764 Mbps using wide 320 MHz channels
- 5 GHz Band: Provides up to 4324 Mbps throughput
- 2.4 GHz Band: Offers up to 688 Mbps for legacy and IoT devices
- Total Combined Speed: Reaches a theoretical aggregate throughput of up to 10.7 Gbps
Key Features and Network Capabilities
Next Generation WiFi 7 Technology
The inclusion of WiFi 7 ensures future-proof compatibility with high-end client devices. Key capabilities include support for advanced modulation and planned Multi-Link Operation (MLO) via subsequent software updates, which allows devices to transmit data over multiple bands simultaneously for reduced latency
Extensive Coverage and High Capacity
A single U7 Pro Wall efficiently covers up to 140 square meters (1,500 square feet). The optimized antenna layout allows the device to manage over 300 concurrent client connections without experiencing throughput drops, making it perfectly suited for commercial areas
High Speed 2.5 GbE Uplink with PoE+
To prevent bottlenecks between the wireless network and wired infrastructure, the hardware features a 2.5 Gigabit Ethernet RJ45 uplink port. The device relies entirely on Power over Ethernet (PoE+) power delivery, drawing a maximum of 22 watts, which eliminates the need for localized AC outlets
Design and Flexible Installation
The enclosure uses a compact polycarbonate and aluminum structure measuring 150 by 103 by 36 millimeters. This slim footprint makes it an unobtrusive alternative to traditional ceiling mounts.
The primary package contains a standard wall mounting bracket and integration level. For customized deployments, optional accessories such as a recessed flush mount or a dedicated desk table stand can be sourced separately.
Centralized Management via UniFi Network
Enterprise network control is fully integrated through the UniFi Network Controller application or UniFi OS. Administrators gain deep visibility into client analytics, RF performance, and advanced settings, including:
- 802.1Q VLAN mapping for traffic segmentation
- Advanced Quality of Service (QoS) rule configurations
- Secure guest hotspot portals with isolated traffic mechanics
- Enhanced security protocols including WPA3 encryption
