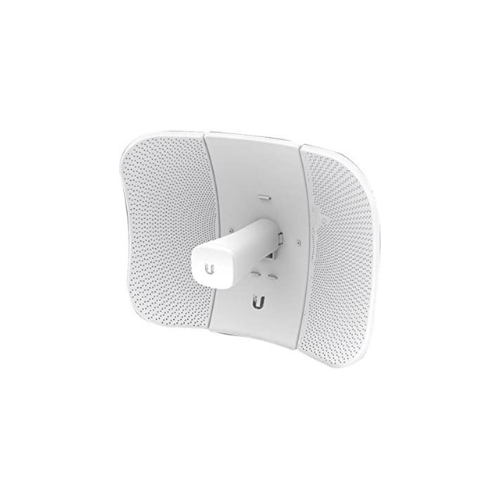

Ubiquiti LBE-5AC-GEN2-US LiteBeam Wireless Bridge 100Mb LAN,GigE, AirMax AC
Key Features
Brand: Ubiquiti
Throughput 450+ Mbps
Windloading 275 N @ 200 km/h (61.8 lbf @ 125 mph)
Integrated Management Radio
Full Adjustment Flexibility
Quick Assembly and Installation
FAST DELIVERY
The Ubiquiti airMAX LiteBeam 5AC Gen 2 (LBE-5AC-Gen2) is a compact, high-performance 5 GHz wireless CPE (Customer Premises Equipment) bridge from the airMAX AC series, featuring a 23 dBi integrated directional antenna and dedicated Wi-Fi management radio. It’s designed for long-range point-to-point (PtP) or point-to-multipoint (PtMP) links, delivering up to 450+ Mbps real TCP/IP throughput—ideal for rural broadband, building-to-building connectivity, ISP backhaul, or remote site internet in Nairobi and surrounding areas needing reliable outdoor wireless bridging with excellent noise immunity.
Achieve long-range wireless bridging with the Ubiquiti airMAX LiteBeam 5AC Gen 2 (LBE-5AC-Gen2): a 5 GHz 23 dBi CPE delivering up to 450+ Mbps throughput, dedicated Wi-Fi management radio, and plug-and-play setup. Perfect for PtP/PtMP links, rural internet, or outdoor connectivity in Nairobi with 200 km/h wind survivability, UV-stabilized enclosure, and easy pole mounting—reliable airMAX AUbiquiti LBE-5AC-GEN2-US LiteBeam Wireless Bridge 100MbTDMA performance for noise immunity and scalability.
Ubiquiti LBE-5AC-GEN2-US LiteBeam Wireless Bridge 100Mb
- 5 GHz airMAX AC Technology: Operates in the 5150–5875 MHz band with airMAX TDMA protocol for superior noise immunity, long-range performance, and up to 450+ Mbps real TCP/IP throughput.
- 23 dBi High-Gain Antenna: 23 dBi integrated directional dish (450 mm reflector) with uniform beamwidth (dual linear polarization)—provides focused coverage for PtP links over several kilometers (depending on line-of-sight and environment).
- Dedicated Wi-Fi Management Radio: Built-in 2.4 GHz Wi-Fi radio for easy alignment and configuration via the UISP Mobile app or web interface—no need to disconnect the main link.
- Gigabit Ethernet Port: 1x 10/100/1000 Mbps RJ45 port with passive 24V PoE (adapter included)—supports high-speed wired connection to the network.
- Plug-and-Play Installation: Quick assembly with dedicated mounting bracket; pole mount kit included for easy outdoor setup with ±20° tilt adjustment for precise aiming.
- Rugged Outdoor Build: UV-stabilized plastic enclosure withstands -40°C to 70°C (-40°F to 158°F), wind survivability up to 200 km/h (125 mph), and wind loading ~200 N @ 200 km/h—durable for Nairobi’s variable weather.
- Low Power Consumption: Max 7W—energy-efficient for remote or solar-powered installations.
- ESD/EMP Protection: Air/contact ±24 kV—protects against surges in lightning-prone areas.
- LED Indicators: Power, LAN, and 4x WLAN signal strength LEDs (software-adjustable RSSI levels)—quick visual alignment and status checks.
- Advanced Software: airOS 8 with airView spectrum analyzer, dedicated management Wi-Fi, alignment tools, and UISP app support for easy setup and monitoring.
- High Compatibility: Works as CPE with airMAX AC base stations (e.g., Rocket 5AC Prism or LiteAP AC) and standard Cat5e/Cat6 cabling—supports TDMA for PtMP scalability.
- Great for Long-Range Links: Affordable CPE for PtP bridging (e.g., building-to-building) or PtMP client in rural broadband—excellent noise immunity and throughput for distances up to 10–15+ km with clear line-of-sight.
- Trusted Ubiquiti Quality: Part of the airMAX lineup, highly rated for performance, durability, and value—perfect for professional wireless bridging or ISP deployments in challenging environments.
