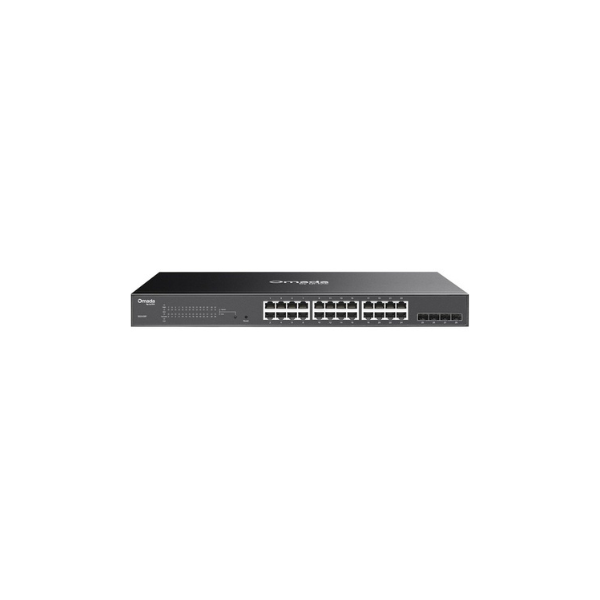

Enterprise Network Optimization with the TP-Link TL-SG2428P JetStream Smart Switch
Building a highly resilient, modern local area network for expanding corporate offices, high-density hospitality venues, and retail networks requires a versatile management backbone. The TP-Link TL-SG2428P JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+ stands out as a premier business-class Layer 2 managed hardware solution. Engineered to function seamlessly within high-capacity environments, this intelligent switch consolidates centralized data pathways and high-power Power over Ethernet pipelines into a single, software-orchestrated central core.
High-Density 250W PoE+ Infrastructure and Device Delivery
Deploying dozens of wireless access points, IP surveillance hardware, and VoIP communication stations can quickly clutter infrastructure closets with messy physical adapters. The TP-Link TL-SG2428P resolves structural cabling hurdles through advanced Power over Ethernet integration.
- 24 Dedicated PoE+ Access Ports: Ports 1 through 24 fully comply with the standard IEEE 802.3af/at parameters, supplying up to 30W of electrical current down each individual ethernet patch line.
- Massive 250W Shared Power Budget: The system maintains a high-capacity shared power pool of 250W, safely driving multiple high-draw devices simultaneously at peak efficiency.
- Smart Power Allocation: Internal firmware continuously monitors allocation metrics, automatically prioritizing critical terminal connections and preventing power overloading.
Full Wire-Speed Gigabit Backbone and SFP Slots
Modern commercial networks experience immediate data buffering, frame clipping, and transfer friction when bulk file synchronization or high-density surveillance feeds overwhelm standard connections.
The core architecture provides a full 56 Gbps non-blocking switching capacity bus combined with an 8K MAC address table size. This translates into a blistering 41.66 Mpps packet forwarding rate, moving large database directories fluidly without internal processing delays. To coordinate long-distance backbone distribution, the physical layout supplements its 24 PoE+ lines with 4 independent Gigabit SFP slots, establishing lag-free highway connections back to central server storage cabinets.
Unified Omada SDN Centralized Cloud Management
Configuring multi-site network parameters or updating individual device policies manually creates resource-heavy operational demands for local IT infrastructure.
The hardware is fully optimized for the specialized TP-Link Omada Software Defined Networking platform. This software architecture enables network coordinators to push remote software upgrades, manage access filtering rules, isolate threats, and audit data streams globally from a single interface anywhere, anytime. IT teams can manage the switch via a convenient cloud portal or standalone methods including an intuitive Web GUI, CLI commands, and SNMP tracking protocols.
Advanced Layer 2 Traffic Management and Security Shields on TP-Link TL-SG2428P JetStream
Protecting private corporate financial records and separating guest traffic demands granular security rules right at the network edge.
- Advanced Access Control Lists (ACL): IT managers can block unauthorized data handling paths based on strict L2/L3/L4 packet metrics.
- Optimized Voice and Video QoS: Advanced Quality of Service priorities ensure virtual business meetings and VoIP phone paths remain crystal clear during high traffic phases.
- Abundant Security Strategies: Built-in safeguards use IP-MAC-Port Binding, Port Security, DoS Defend, Storm Control, and DHCP Snooping to shield the core network from external attacks.
Technical Specifications Table
| Feature | Specification |
|---|---|
| Manufacturer Model Reference | Omada JetStream TL-SG2428P |
| Switch Core Classification | Smart Layer 2 Managed Gigabit Switch |
| Total Physical Access Interfaces | 24 × Gigabit 10/100/1000 Mbps RJ45 Ports |
| Dedicated Uplink Ports | 4 × Gigabit SFP Slots |
| Power Over Ethernet Standards | IEEE 802.3af/at PoE+ Compliant |
| Shared Total PoE Power Budget | 250 Watts |
| Total Switching Capacity Bus | 56 Gbps Non-Blocking |
| Packet Forwarding Rate | 41.66 Mpps |
| MAC Address Table Size | 8K Entries with Auto-Learning |
| Dynamic Management Systems | Omada SDN Cloud Controller, Web GUI, CLI Management |
| Hardware Housing Build | 19-inch Rackmountable Industrial Metal Casing |
| Physical Layout Dimensions | 440mm × 220mm × 44mm (1U Rack Height) |
Investing in a dedicated Omada managed switch allows property developers, business owners, and IT network managers to lower integration costs, preserve data presentation layouts, and maintain enterprise connectivity stability. The functional combination of full multi-gigabit routing, high-power PoE+ allocation, and centralized cloud orchestration positions this model as an essential tool for scaling business communication infrastructures.
