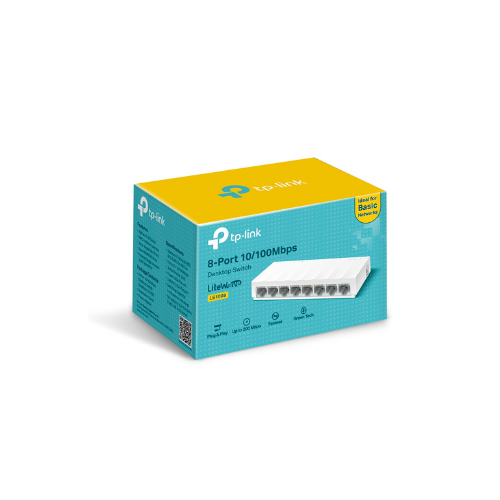

TP-Link TL-LS1008 8-Port 10/100Mbps Desktop Switch
The TP-Link TL-LS1008 LiteWave 8-Port 10/100Mbps Desktop Switch is a professional-grade, unmanaged networking solution engineered to expand local area networks with plug and play simplicity. Designed for home offices, small business departments, and retail points of sale, this energy-efficient switch allows users to instantly connect multiple wired network devices like computers, printers, IP security cameras, and smart TVs without requiring any software configuration.
Plug and Play Integration and Non-Blocking Architecture
The hardware layout focuses on immediate workspace deployment and efficient data distribution:
- Zero Configuration Setup: As a fully unmanaged switch, it requires no IP addressing or administrative setup; devices begin communicating immediately upon connection.
- Auto-MDI/MDIX Technology: All eight ports support automatic crossover detection, eliminating the need for specialized crossover cables or dedicated uplink ports.
- Auto-Negotiation Smart Sensing: Each port independently senses the link speed of the connected hardware (either 10 Mbps or 100 Mbps) and intelligently adjusts for maximum compatibility and performance.
- Non-Blocking Switching Capacity: Features a 1.6 Gbps switching fabric with a 128KB data buffer, allowing the switch to forward and filter packets at full wire speed for smooth data transmission.
Green Ethernet Technology and Energy Efficiency
The internal circuitry incorporates smart power management features to lower operational costs:
- TP-Link LiteWave Green Tech: Automatically adjusts electrical power consumption based on the link status and cable length of connected devices, minimizing power waste.
- Power Conservation Rules: When a connected computer or peripheral is turned off, the corresponding port enters a low-power standby state rather than drawing continuous energy.
- Fanless Quiet Design: Built entirely without internal cooling fans, ensuring completely silent operation and reducing mechanical components that can fail over time.
Compact Form Factor and Durable Engineering
The physical chassis is optimized for discreet placement across diverse home or workplace environments:
- Streamlined Desktop Housing: Enclosed in a compact, durable plastic casing with a clean aesthetic that fits neatly onto crowded desks or shelving units.
- Efficient Heat Dissipation: Designed with passive ventilation side slots that maintain safe internal component temperatures under heavy continuous data loads.
- IEEE 802.3x Flow Control: Implements robust flow control mechanisms in full-duplex mode and backpressure in half-duplex mode to prevent data packet drops during peak network congestion.
Technical Specifications
| System Feature | Technical Specification Blueprint |
|---|---|
| Model Designation | TL-LS1008 / LiteWave Series |
| Physical Interface Ports | 8 x 10/100 Mbps Auto-Negotiation RJ45 Ports |
| Network Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Data Transfer Rates | 10/100 Mbps at Half-Duplex / 20/200 Mbps at Full-Duplex |
| MAC Address Table | 2K Entries with automated learning and aging |
| Max Power Consumption | Extremely low maximum draw of approximately 1.57 Watts |
| External Power Source | External Power Adapter (Output: 5V DC / 0.6A) |
| Physical Dimensions | 124.6 mm x 48.7 mm x 22.8 mm |
Frequently Asked Questions
Can I connect this 10/100Mbps switch to a Gigabit router or computer?
Yes. The ports are universally backward compatible. If you connect a Gigabit (1000Mbps) device to the TL-LS1008, the port will automatically negotiate and establish a stable connection at 100Mbps.
Yes. The ports are universally backward compatible. If you connect a Gigabit (1000Mbps) device to the TL-LS1008, the port will automatically negotiate and establish a stable connection at 100Mbps.
Is this switch suitable for expanding a high-definition 4K video surveillance network?
For small setups with a few standard IP cameras, 100Mbps bandwidth per port is sufficient. However, if you are connecting multiple high-resolution 4K security cameras or executing massive network-attached storage transfers, we recommend upgrading to a Gigabit desktop switch like the TL-LS1008G to prevent localized bandwidth bottlenecking.
For small setups with a few standard IP cameras, 100Mbps bandwidth per port is sufficient. However, if you are connecting multiple high-resolution 4K security cameras or executing massive network-attached storage transfers, we recommend upgrading to a Gigabit desktop switch like the TL-LS1008G to prevent localized bandwidth bottlenecking.
