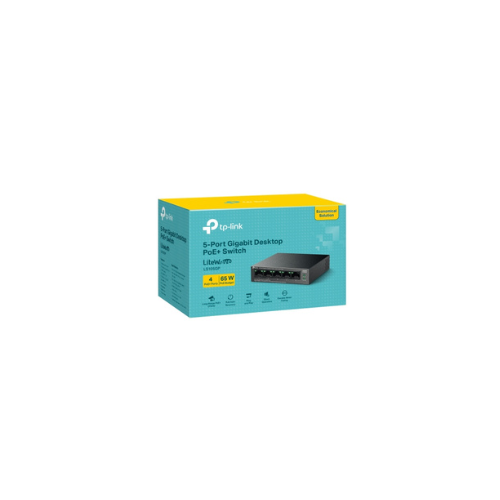

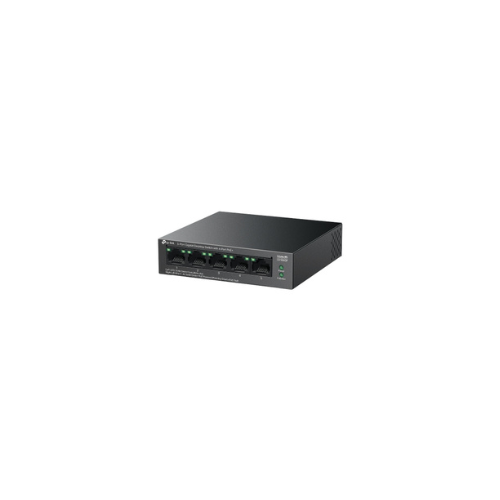

TP-Link LS105GP 5-Port Gigabit PoE Switch – Unmanaged, 65W,
The TP-Link LS105GP (5-Port Gigabit Desktop Switch with 4-Port PoE+) is a high-performance, unmanaged networking component engineered to deliver lightning-fast data transfer and robust electrical power over single network lines. This enterprise-ready desktop hub eliminates the need for nearby power outlets or bulky wall adapters at camera and access point deployment locations. Homeowners, small business operators, and surveillance installers looking to build a clean hardware architecture can rely on this device to sustain non-stop connectivity and steady power distribution for multiple network clients simultaneously.
Search Details
- Primary Keyword Phrase: TP-Link LS105GP
- Page Title: TP-Link LS105GP 5-Port Gigabit PoE Switch Specs
- Snippet Text Summary: Review the TP-Link LS105GP unmanaged gigabit switch. Discover its 65W PoE power budget, durable metal casing, and plug-and-play setup.
High-Output PoE+ Power Management
The standalone feature of this hardware is its ability to transmit electrical current alongside high-speed data packets over standard copper network lines:
- 65W Total Power Budget: Allocates a robust pool of power across its four dedicated power-over-Ethernet ports to run demanding peripheral hardware arrays.
- 30W Per-Port Delivery: Supplies up to 30W on any single PoE port, conforming fully to standard 802.3af/at specifications to drive power-hungry devices smoothly.
- Intelligent Power Priority: Features built-in hardware protection rules that cut power automatically to the lowest-priority port if total client consumption breaches the 65W limit, safeguarding the switch circuitry.
Lightning-Fast Gigabit Performance and Infrastructure
The physical interface panel utilizes full gigabit technology across all interfaces to prevent local network bottlenecks and data dropouts during peak usage:
- 5 Gigabit Ports: Features four PoE+ input ports alongside one dedicated gigabit uplink interface to connect the switch directly to a master router, core switch, or network video recorder.
- 10Gbps Switching Capacity: Incorporates a non-blocking internal switching fabric that processes concurrent data streams from high-definition tracking cameras without lagging.
- IEEE 802.3x Flow Control: Stabilizes data packet transmission pipelines to secure absolute data integrity, preventing packet loss during major local file transfers.
Plug-and-Play Setup and Rigid Metal Construction
Setting up local data and power networks requires zero software installation, drivers, or technical adjustments:
- Instant Plug-and-Play: Operates immediately upon plugging in the hardware and running network lines, configuring data rates and power delivery automatically without app dashboards.
- Durable Steel Enclosure: Houses sensitive internal circuits inside a rugged, compact metal protective casing designed to optimize heat dissipation and endure industrial workspaces.
- Fanless Thermal System: Runs in complete, absolute silence by using passive cooling mechanics, making it ideal for quiet desks, small offices, bedrooms, and retail counters.
Frequently Asked Questions
What specific hardware can be powered by this switch
The unit is specifically optimized to supply continuous power and data links to equipment such as IP security cameras, wireless access points, IP desk phones, and smart lighting grids.
What network cable category is required for this switch
To achieve full gigabit speeds and stable power delivery over maximum distances, it is recommended to use standard Category 5e, Category 6, or higher copper cables.
Does this switch require an on-site controller
No, the device is an unmanaged plug-and-play network switch that functions independently without any software tools, license keys, or configuration steps.
