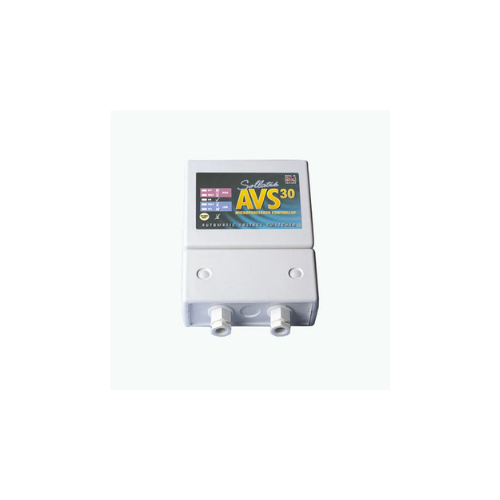

Sollatek AVS30 Voltshield Automatic Voltage Switcher
Key Features
Brand:Sollatek
Protect against: High voltage, Low voltage, Spikes/surges, Power backs surges, Loss Of Neutral (LoN)
Ideal for: Air conditioners, Large fridge/freezers, Whole office, Complete circuits
Max power: 30 Amps
Frequency: 50/60Hz
Wait time: User adjustable from 10 seconds and 10 minute
FAST DELIVERY
Sollatek AVS30 Voltshield Automatic Voltage Switcher
The Sollatek Voltshield AVS30 (Automatic Voltage Switcher) is a heavy-duty, commercial-grade power protection device engineered to safeguard high-consumption electrical appliances, whole office networks, and entire building circuits from destructive power fluctuations. This high-capacity hardware eliminates catastrophic equipment failure by combining over-voltage, under-voltage, and loss of neutral protection into a single hardwired safety system. Property owners, HVAC technicians, and industrial facilities looking to secure high-value compressors or main power distributions can rely on this microprocessor-controlled unit to maintain a constant shield against severe electrical disturbances.
Search Details
- Primary Keyword Phrase: Sollatek AVS30
- Page Title: Sollatek Voltshield AVS30 Automatic Voltage Switcher Specs
- Snippet Text Summary: Explore the Sollatek AVS30 Voltshield switcher. Learn how its 30-amp capacity, user-adjustable voltage limits, and customizable time delay protect whole circuits.
Heavy-Duty 30-Amp Power Capacity and Circuit Integration
Unlike standard plug-in outlet adapters, this device features an industrial design tailored for permanent electrical terminal installation directly upstream of critical hardware groups:
- 7200W Power Load Limits: Supports a maximum continuous running current of 30 Amps safely at 230V, allowing it to feed large electrical sub-panels or complete office rooms
- 110-Amp Inrush Current Handling: Accommodates massive introductory start-up power surges up to 110 Amps for 20 milliseconds, ensuring heavy motorized equipment starts safely without false tripping.
- Hardwired Screw Brass Terminals: Features rugged physical internal terminal blocks designed to receive incoming mains feed wiring and forward outgoing cleaned current via secure cable glands.
- Loss of Neutral Protection: Integrates advanced structural monitoring that immediately isolates your entire facility if a utility transformer drops its neutral line link, preventing massive voltage imbalances.
Granular Microprocessor-Driven Threshold Settings
The internal computer circuitry allows system technicians to modify specific cutoff windows to match the operational guidelines of specialized industrial appliances:
- Adjustable Over-Voltage Disconnect: Features a rotational dial setting to pick your high-voltage shutdown point anywhere from 230V up to 300V based on hardware sensitivities
- Customizable Under-Voltage Disconnect: Provides adjustable low-power thresholds stretching between 150V and 230V to safeguard motors from drawing excessive current during utility brownouts.
- Low Voltage Blind Time Control: Allows users to configure a temporary sensing delay buffer. This tells the internal processor to ignore quick introductory voltage dips caused when heavy machinery first switches on, preventing unnecessary power interruptions.
Variable Reconnection Wait Delay and TimeSave Function
Motor compressors used in climate control infrastructure experience extreme stress if power turns off and back on rapidly before internal gas pressures drop. This hardware incorporates intelligent timing adjustments to resolve this vulnerability:
- 10-Second to 10-Minute Delay: Features a fully adjustable front dial to regulate your exact start-up wait period, ensuring power grid stability before reintroducing power to appliances.
- Proprietary TimeSave Technology: Monitors the exact amount of time the device has been offline. If grid power has been down for longer than your chosen wait duration, the system reconnects your machinery in just 10 seconds of stabilization, saving useful operational time.
- Manual Override Controls: Houses a dedicated physical reset button on the interface panel to let technicians instantly bypass the active wait countdown manually once line safety is verified.
- 5-LED Visual Status Array: Implements bright front-facing light elements that continually map real-time power parameters, flashing clear tracking data for high voltage, low voltage, wait cycles, normal grid function, and active load connection.
Frequently Asked Questions
What specific appliances are best suited for an AVS30 deployment
The 30-amp hardware platform is highly optimized to run heavy climate control equipment including central air conditioning units, large walk-in freezers, industrial beverage coolers, deep wells, pump setups, and complete server bank infrastructure.
Can I use this switcher to protect an entire house or apartment
Yes, if your entire residential property or small business workspace consumes less than 30 amps of continuous electrical draw, the unit can be wired directly onto the main incoming consumer board link to act as a whole-building power shield.
What level of surge protection is built into the unit
The internal safety circuitry houses heavy-duty transient suppressors capable of redirecting sudden electrical surges up to 160 Joules, initiating response mechanics inside 10 nanoseconds to dissolve lightning spikes up to 6500 Amps.
