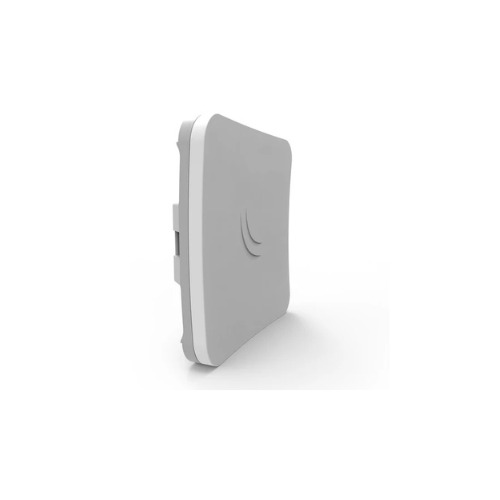

MikroTik SXTsq Lite5 (RBSXTSQ5ND) Access Point
Key Features
Brand:Mikrotik
• CPU Core Count: 1
• Size of RAM: 64MB
• Storage: 16MB Flash
• 10/100 Ethernet Ports: 1
• Wireless Bands: 5GHz
• Operating Frequency: 5150 to 5875MHz
• Protocols: 802.11a/n
FAST DELIVERY
1 Year Warranty
Ultimate Review of MikroTik SXTsq Lite5 Outdoor Wireless CPE
The MikroTik SXTsq Lite5 (RBSXTSQ5ND) stands as an ultra-compact, lightweight, and weather-proof outdoor wireless device engineered for reliable point-to-point links or use as a Customer Premises Equipment (CPE) unit. Operating on the clean 5 GHz frequency spectrum, this hardware asset is designed to bridge network gaps across several kilometers while keeping deployment costs and physical wind-load footprint to an absolute minimum. Here is a comprehensive technical look to help optimize this outdoor wireless device for your long-range networking infrastructure.Â
Key Hardware Specifications
This outdoor wireless unit balances integrated antenna physics with a highly efficient, weather-shielded design.
- Core Processor: AR9344 single-core CPU running at a steady 600 MHz clock speed.
- Memory Capacity: 64 MB of system RAM paired with 16 MB of onboard flash storage memory.
- Wired Interface: Single 10/100 Mbps Ethernet port for data and power delivery.
- Integrated Antenna: Built-in 16 dBi dual-polarization panel antenna with a 60-degree beamwidth.
- Wireless Protocol: 802.11a/n dual-chain 2×2 MIMO technology operating in the 5 GHz band.
- Power Provisioning: Supports passive Power over Ethernet (PoE) inputs ranging from 10V to 30V DC.
- Weatherproof Rating: Robust IP54-certified chassis designed to withstand harsh outdoor elements.Â
Integrated Antenna Optimization and Physical Re-engineering
The defining advancement of the SXTsq Lite5 over older generations is the complete mechanical overhaul of its internal antenna system.Â
MikroTik engineers radically reduced the physical thickness of the unit, making the SXTsq two times thinner than the classic SXT model. Despite this compact form factor, the built-in 16 dBi panel antenna retains excellent signal focus. The dual-chain 2×2 MIMO architecture transmits data across both horizontal and vertical polarizations simultaneously.Â
This design avoids the common cross-polarization signal loss found in cheaper single-chain gear, ensuring stable wireless throughput over long distances. The flat panel design also significantly decreases wind resistance, preventing alignment drift during severe storms and high-altitude deployments.Â
Ideal Deployment Use Cases
Point to Point Wireless Bridges
Pairing two SXTsq Lite5 units allows you to securely share an internet connection between two distinct buildings or farm structures up to 5 kilometers apart.
Wireless ISP Customer Terminals
Wireless Internet Service Providers can deploy this hardware as a low-cost, durable client station to pull feeds from a centralized sector access point.Â
Remote IP Camera Backhaul
It provides a high-capacity, long-distance wireless link to route video streams from remote parking lot security cameras back to a central network video recorder.Â
RouterOS v7 Software Capabilities
Shipping with a full Type 3 license of RouterOS, this hardware asset operates on an enterprise-grade software foundation with zero hidden subscription fees.Â
While it is primarily utilized as a long-range wireless station or link, the underlying operating system gives network engineers full administrative control. You can configure granular firewall rules, establish isolated VLAN segments, enforce bandwidth limit templates for individual clients, or run real-time packet sniffer diagnostics.
The software includes proprietary NV2 and Nstreme wireless protocols. Activating NV2 switches the wireless transmission to a Time Division Multiple Access (TDMA) architecture, which dramatically cuts down latency and eliminates the “hidden node” collision problems often found in standard outdoor Wi-Fi environments.Â
Physical Installation and Alignment Guidelines
Physical deployment is streamlined through a versatile back-panel bracket system that supports multiple mounting orientations.
The rear of the chassis features integrated slots for directly threading a standard metal hose clamp, allowing for rapid attachment to an outdoor antenna pole or mast. Additionally, the unit includes three distinct mounting points on different axes, giving you the flexibility to mount it on horizontal railings or vertical poles while maintaining correct horizontal alignment
Because the device relies on passive Power over Ethernet, it receives its electrical power directly down the same Cat5e or Cat6 network line that carries your data. This setup removes the need to run separate AC electrical wiring to the roof or tower mast. To protect the internal processor from outdoor static electricity buildup, always ground the device properly using a shielded outdoor ethernet cable and a dedicated grounding wire attached to the integrated grounding screw terminal on the chassis.
