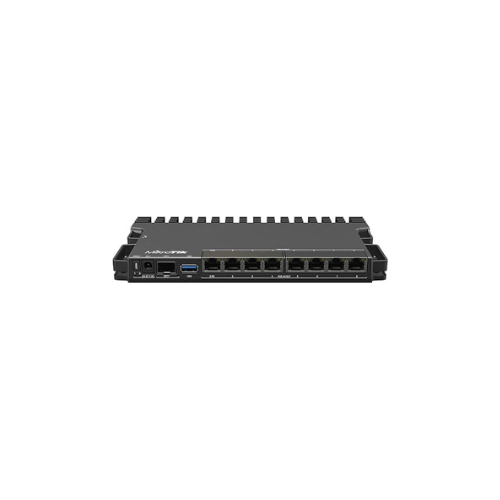

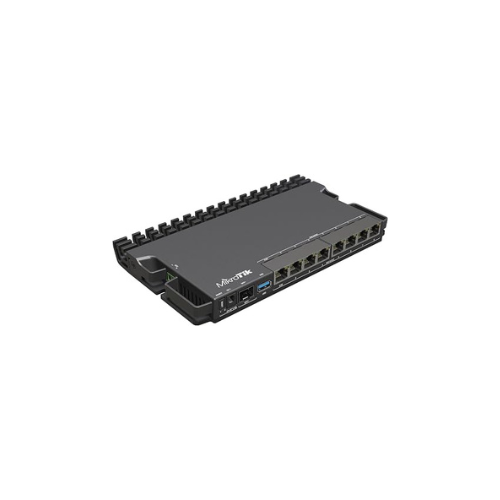

MikroTik RouterBORD 5009UPr+S+in with Marvell Armada ARMv8 CPU (RB5009UPR+S+IN)
Key Features
Brand:MikroTik
CPU Manufacturer ARM
CPU Model AMD E Series
CPU Speed 1.4 GHz
CPU Socket Socket SP3
FAST DELIVERY
MikroTik RouterBOARD RB5009UPr+S+IN Gigabit PoE Router Product Guide
Comprehensive Product Overview
The MikroTik RouterBOARD RB5009UPr+S+IN is an enterprise-grade, high-performance compact router engineered to handle data-intensive operations, network towers, and dense home laboratories. This variant builds directly upon the acclaimed RB5009 infrastructure by introducing expansive power redundancy, incorporating full Power over Ethernet (PoE) input and output capabilities across all of its standard copper network ports. It functions as a resilient, heavy-duty processing anchor for Wireless Internet Service Providers (WISPs), remote edge nodes, and smart business topologies
At the center of its performance matrix is a powerful Marvell Armada ARMv8 (88F7040) quad-core processor running at an automated frequency of up to 1.4 GHz. This 64-bit architecture is explicitly paired with 1GB of fast DDR4 RAM and 1GB of NAND storage to manage complex traffic queuing, intense firewall rules, and deep encrypted tunnels without introducing system latency. The processor interfaces directly with a high-capacity Marvell Amethyst switch chip via a 10 Gbps full-duplex internal connection pipeline, ensuring that inter-port routing executes at wire-speed
The primary infrastructural advantage of the RB5009UPr+S+IN is its unmatched power redundancy framework. It features a smart power controller that can draw or supply energy through up to 9 independent power deployment pathways, including standard DC jacks, a 2-pin industrial terminal, and all 8 Ethernet interfaces. The integrated operating core natively balances incoming voltage profiles to guarantee zero-downtime automated failover. Housed in a passive, fanless metal enclosure, the chassis itself serves as a massive structural heatsink, delivering silent, premium thermal dissipation across standard network racks.
Key Features
- Marvell Armada 64-Bit Core: Powered by an advanced quad-core 1.4 GHz ARMv8 processor to handle extreme traffic throughput and routing tasks easily.
- Multi-Gigabit Port Configuration: Outfitted with 7x Gigabit Ethernet ports, 1x high-speed 2.5G Ethernet port, and 1x elite 10G SFP+ slot for flexible fiber backhauls. [
- Universal PoE Input and Output: Supports both 802.3af/at and Passive PoE-In/PoE-Out capabilities simultaneously across all 8 standard Ethernet ports.
- Extensive Power Redundancy: Accommodates multiple simultaneous power inputs to maintain constant system uptime during structural electrical grid failures.
- Passive Fanless Thermal Cooling: Thick metal desktop enclosure pulls thermal loads away from processing silicon silently, avoiding internal mechanical wear points.
- IPsec Hardware Acceleration: Features dedicated cryptographic engines to handle hardware-accelerated VPN processing directly inside the processor.
- RouterOS v7 Level 5 License: Fully unlocks advanced software routing, custom script queues, MPLS/VPLS topologies, and carrier-grade network filtering.
Technical Specifications
| System Performance Feature | Specification Details |
|---|---|
| Model Code Number | RB5009UPr+S+IN |
| Processor Architecture | ARM 64-bit (Marvell 88F7040 Core) |
| CPU Core Matrix Count | 4 Cores / 4 Processing Threads |
| CPU Clock Tracking | 350 MHz to 1400 MHz (Auto-negotiating) |
| Onboard System Memory | 1 GB DDR4 RAM |
| Storage Architecture | 1 GB Integrated NAND Flash Memory |
| Switch Silicon Module | Marvell 88E6393 Engine |
| Interface Interfacing | 7 x 1G Ports, 1 x 2.5G Port, 1 x 10G SFP+ Slot, 1 x USB 3.0 Type A |
| PoE Out Current Limits | Up to 25W per port (Compatible with 802.3af/at standards) |
| Maximum Total Power Draw | Up to 150 Watts with full attachments connected |
High-Utility Operation Capabilities
- Smart PoE Power Allocation: The onboard controller automatically selects the highest available input voltage line to power itself and active downstream PoE devices safely, protecting mixed-voltage hardware components
- High-Density Server Grid Rackmount: Thanks to its optimized structural sizing, users can bridge up to four matching RB5009 routers sideways into a single 1U server rack space using cheap physical mounting accessories.
- Container Virtualization Hosting: The combination of a 64-bit ARM CPU and 1GB of RAM allows network administrators to run localized containers (such as Pi-hole or AdGuard Home) natively within RouterOS v7.
Frequently Asked Questions
What is the primary difference between the RB5009UG and the RB5009UPr model?
The original RB5009UG+S+IN model only supports PoE input on a single network port and does not have the ability to supply power outwards. The RB5009UPr+S+IN model introduces full PoE-In and PoE-Out on all 8 Ethernet ports, transforming it into a high-capacity power distribution node
Can I run a mix of different power input voltages simultaneously?
The router safely accepts mixed inputs across its interfaces ranging from 24V to 57V DC. However, it does not blend them; the smart power switch automatically defaults to the highest input voltage to feed the PoE-out lines, ensuring connected equipment receives full power requirements.
Does this router include built-in wireless Wi-Fi radios?
No, the RB5009 series is engineered strictly as a heavy-duty wired security gateway and core routing engine. To deploy wireless coverage, you must connect external access points to its high-speed Ethernet ports, which can be powered directly via the router’s built-in PoE-out channels
