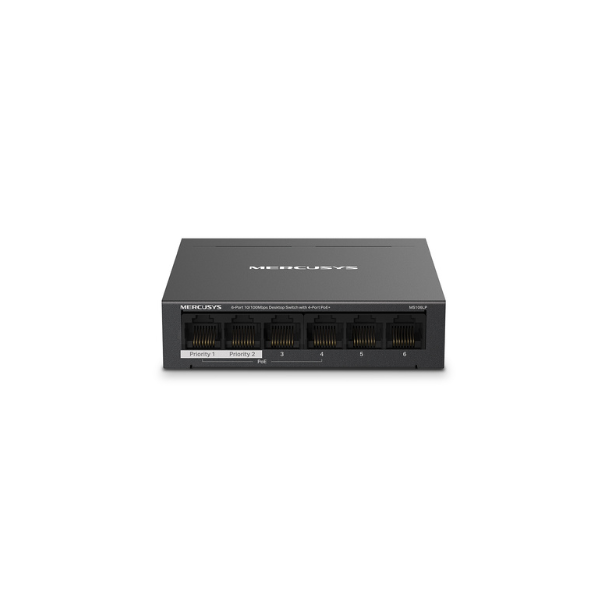

Efficient Surveillance Infrastructure with the MERCUSYS TL-MS106LP 6-Port PoE+ Switch
Deploying a clean, highly reliable network framework for IP security cameras, wireless access points, and VoIP phone stations requires a dedicated power delivery foundation. The MERCUSYS TL-MS106LP 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ stands out as a premier unmanaged hardware solution engineered specifically for small offices, home networks, and commercial CCTV setups. By bundling electrical current and network data stream delivery into a single ethernet line, this compact device entirely removes the need for cluttered standalone power adapter configurations.
High Power PoE+ Allocation and Self Healing Mechanics
Standard unpowered networking equipment forces installer teams to route separate electrical conduits alongside structural lines, inflating overall deployment budgets. The MERCUSYS TL-MS106LP bypasses cabling hurdles through integrated Power over Ethernet automation.
- Two Cables in One: Four dedicated Fast Ethernet ports deliver simultaneous power and data tracking down a single standard Cat5e or Cat6 line.
- IEEE 802.3af/at Compliance: The hardware supplies up to 30W of peak power per individual port alongside a solid 40W total system power budget.
- PoE Auto Recovery Automation: The internal network controller continuously monitors the link status of attached devices, automatically initiating a hard power reboot on dropped or unresponsive IP cameras to reduce maintenance loops.
Specialized Surveillance Extensions and Uplink Security
Managing high volume surveillance feeds across perimeter layouts requires specific structural pathways that protect critical digital assets from network lag or camera clipping.
The architecture includes a dedicated row of hardware control toggles on the device face to execute performance optimizations instantly without software interfaces. Flipping on Extend Mode safely downscales port speeds to 10 Mbps while stretching total data and power transmission distances out to a massive 250 meters, perfect for distant outdoor cameras. Additionally, Isolation Mode segments active traffic pathways across individual downlink channels, while two non PoE uplink ports maintain independent connections to your core internet router and digital network video recorder (NVR).
Zero Configuration Setup with Energy Efficient Routing
Expanding a commercial office branch workspace or retail inventory system shouldn’t involve complex software updates or continuous network monitoring lines.
Operating under true unmanaged plug and play guidelines, the system requires no manual driver setups or network scripting files. Built in auto negotiation sensors and Auto MDIX detection scan structural pin layouts automatically, adjusting speeds instantly and allowing teams to deploy standard patch lines or crossover wires interchangeably. Backed by store and forward switching pathways, files transfer cleanly to keep your connected smart assets perfectly synchronized.
Durable Metal Protection and Silent Operation
Desktop surfaces, equipment racks, and telecom panels demand subtle accessories built to operate reliably under variable thermal conditions.
The hardware core is protected by an industrial grade, rugged metal casing shell that speeds up passive heat dissipation to guarantee a long component lifespan. Engineered with a fanless cooling framework, the switch functions in absolute acoustic silence, entirely eliminating distracting motor buzzes from quiet working zones, front desk counters, or residential home shelves. Clear LED status indicator pilot lights sit on the face panel to provide immediate visual confirmation of active power distribution and individual port links.
Technical Specifications Table
| Feature | Specification |
|---|---|
| Manufacturer Model Reference | TL-MS106LP / MS106LP |
| Switch Core Classification | Unmanaged Fast Ethernet PoE+ Switch |
| Outgoing Hardware Interfaces | 6 x 10/100 Mbps RJ45 Ports (4 PoE+ Ports) |
| Supported System Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af/at |
| Total Switching Capacity Bus | 1.2 Gbps Non-Blocking |
| Packet Forwarding Rate | 0.9 Mpps |
| Maximum Output Per Port | Up to 30 Watts |
| Shared PoE Power Budget | 40 Watts Total Budget |
| Advanced Mode Selections | Extend Mode (250m), Isolation Mode, PoE Auto Recovery |
| Thermal Dissipation Design | Fanless Silent Rugged Metal Case Housing |
| Physical Layout Dimensions | Approximately 100mm x 98mm x 25mm |
| Typical Deployment Workflows | CCTV IP Camera Systems, Small Office Networks, VoIP Stations |
Investing in a dedicated unmanaged PoE+ platform allows property owners and business administrators to eliminate complex power runs, secure local surveillance paths, and maintain operational network stability. The functional combination of efficient 10/100 Mbps power routing, long range extension tools, and a space saving silent chassis positions this model as an essential tool for high volume tracking precision.
