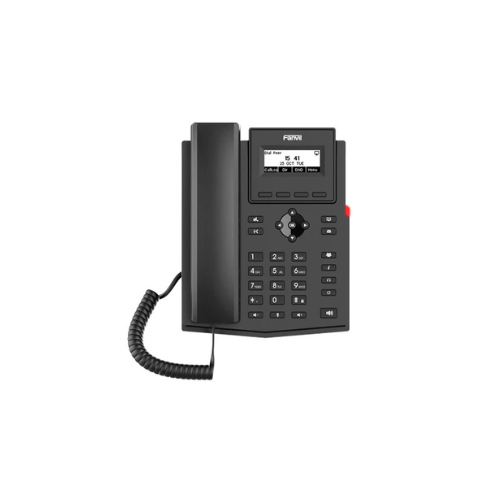

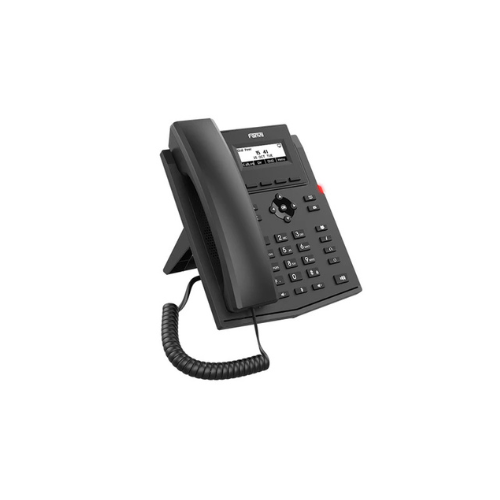

Fanvil X301W Entry Level IP Phone
Key Features
Brand:Fanvil
2.3-inch 128×48 pixel dot-matrix display
Supports audio codec G.722 and Opus, HD audio on speakerphone and handset
Supports 6-party local conference
Support EHS wireless headset
Built-in 2.4GHz & 5GHz Wi-Fi, realizing more flexible connectivity
FAST DELIVERY
Fanvil X301W Entry-Level Wi-Fi IP Phone Product Guide
Comprehensive Product Overview
The Fanvil X301W is an entry-level, highly functional desktop IP phone engineered to deliver reliable business communication for corporate offices, call centers, and small-to-medium enterprises. While positioned as an essential endpoint, this model integrates advanced wireless connectivity by featuring built-in 2.4GHz and 5GHz dual-band Wi-Fi. This wireless capability completely eliminates the need for expensive office Ethernet recabling, enabling clean, flexible workstation deployments anywhere within reach of a stable wireless network.
At the center of its audio performance is a comprehensive implementation of HD voice technologies. The handset and the full-duplex speakerphone utilize advanced G.722 and Opus wideband audio codecs to deliver crystal-clear voice transmission. This setup works alongside a specialized acoustic shield and intelligent network packet loss concealment (PLC) algorithms, which neutralize disruptive ambient office noise and prevent audio stuttering during localized network fluctuations. It supports up to 2 SIP lines, allowing users to manage multiple concurrent calls through an intuitive, streamlined interface
Administrative management is optimized through an easy-to-read 2.3-inch dot-matrix graphical display with a backlit screen, ensuring clear legibility in diverse lighting environments. For deployment flexibility, the device can operate on a standard desktop via its multi-angle adjustable stand or be mounted directly to a wall using cheap physical accessories. The X301W interfaces natively with major cloud communication platforms, making it an ideal, cost-effective infrastructure anchor for building a modern, highly mobile communication landscape
Key Features
- Dual-Band Wi-Fi Integration: Outfitted with built-in 2.4GHz and 5GHz Wi-Fi bands to unlock fast, wire-free desktop deployments.
- 2 SIP Line Registrations: Supports up to two independent SIP accounts, facilitating efficient multi-line call handling.
- HD Wideband Audio Performance: Employs premier G.722 and Opus codecs to maintain life-like voice depth and exceptional clarity.
- Intelligent Acoustic Shield: Suppresses distracting background environment sounds to keep call focus strictly on the user’s voice.
- Backlit Graphical Screen: Features a 128×48 pixel backlit dot-matrix display for comfortable navigation and status tracking.
- EHS Wireless Headset Support: Integrates Electronic Hook Switch (EHS) pathways to connect and control wireless headsets remotely.
- Robust 6-Way Audio Conferencing: Allows users to host a local 6-party audio conference directly from the phone interface without requiring central bridge servers
Technical Specifications
| System Feature | Specification Details |
|---|---|
| Model Designation | Fanvil X301W |
| Device Positioning | Cost-effective Entry-Level Wireless IP Phone |
| SIP Line Support | 2 Accounts |
| Display Panel | 2.3-inch Backlit Dot-Matrix Matrix Screen (128×48 resolution) |
| Wireless Connectivity | Integrated Dual-band Wi-Fi (2.4GHz and 5GHz) |
| Wired Network Ports | Dual 10/100 Mbps Ethernet Ports (Bridged LAN/PC paths) |
| Power Interfacing | 5V DC / 0.6A External Power Adapter (Included in package) |
| Audio Codec Profiles | Wideband: G.722, Opus; Narrowband: G.711a/u, G.723.1, G.726, G.729A/B |
| Mounting Configurations | Dual-angle desktop stand (45 and 50 degrees) or Wall-mount ready |
High-Utility Management Benefits
- Flexible Network Topologies: The dual Ethernet ports function as a built-in switch, allowing a PC to share the phone’s wired network path if a Wi-Fi connection is not utilized.
- Centralized Cloud Provisioning: Integrates seamlessly with the Fanvil Device Management System (FDMS), allowing network teams to mass-configure, update, and manage remote deployments via a web browser.
- Unified Platform Interoperability: Validated for native plug-and-play setup with leading VoIP ecosystems, including 3CX, Asterisk, Yeastar, FreePBX, and Grandstream.
Frequently Asked Questions
Does the Fanvil X301W support Power over Ethernet (PoE)?
No. Because the X301W is engineered primarily for wireless environments, it relies on the included external 5V DC power adapter. If you require standard wired PoE functionality, you should consider the sister model, the Fanvil X301p
Can I connect a standard wired headset to this phone?
Yes. The phone features a dedicated, standard RJ9 headset port on its rear panel, allowing users to attach compatible call center headsets alongside the standard handset lines.
What is the maximum number of people I can invite to a phone conference?
The device supports an advanced local 6-way audio conference engine. This means you can initiate a call and patch in up to five separate external lines simultaneously directly from your desktop interface, bypassing the need for complex enterprise bridge configurations.
