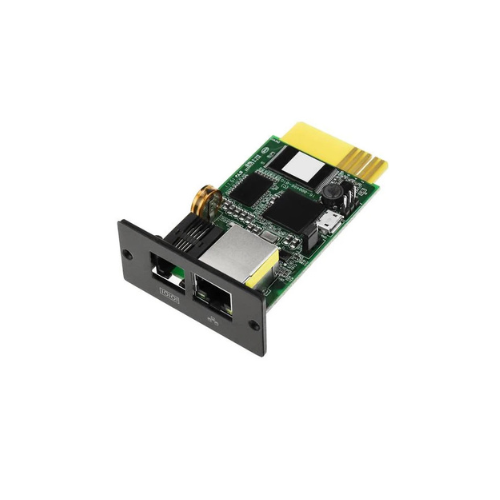

EVI SNMP Card for Online 1kVA-3kVA Rack Mount UPS – EP-UPSUACASN
Key Features
Brand:EVI
• Supports remote UPS monitoring and management
• SNMP network communication capability
• Real-time status and event monitoring
• Instant alarm and notification support
• Ethernet connectivity for network access
• Centralized power infrastructure management
• Seamless integration with compatible UPS systems
• Enterprise-grade monitoring functionality
FAST DELIVERY
EVI SNMP Card for Online 1kVA-3kVA Rack-Mount UPS Product Guide
Comprehensive Product Overview
The EVI SNMP Card for Online 1kVA-3kVA Rack-Mount UPS (Model: EP-UPSUACASN) is an enterprise-grade network management adapter designed to convert standalone uninterruptible power supplies into intelligent, network-attached infrastructure nodes. While standard USB or RS232 connections restrict UPS management to a single, physically attached computer, this internal Smart-Slot card integrates your backup power system directly into your local area network (LAN) or wide area network (WAN). By leveraging standard IP communication protocols, this card grants IT administrators comprehensive, remote oversight of their power security perimeter from any location in the world.
Operating via a secure, embedded web server, the EP-UPSUACASN enables remote monitoring of critical UPS parameters. Administrators can track real-time electrical metrics such as input/output voltage loops, frequency fluctuations, battery percentage capacities, and current load demands via a standard web browser. In the event of a power anomaly, such as a localized blackout, brownout, or system overload, the card functions as an automated communication hub. It instantly dispatches Simple Network Management Protocol (SNMP) traps and automated email alerts to network administrators, enabling immediate intervention before hardware infrastructure fails.
The primary operational benefit of this network card is its ability to orchestrate automated, graceful server shutdowns. During prolonged blackouts where the UPS batteries approach a critical low-voltage threshold, the card communicates across the network with specialized shutdown daemon software installed on client servers. This initiates a structured, automated shutdown sequence across multiple network operating systems, protecting local databases, virtual machine hypervisors, and storage partitions from data corruption. Housed in a compact, plug-and-play format, it slides directly into the dedicated intelligent smart slot found on the back panel of EVI 1000VA to 3000VA online double-conversion UPS systems.
Key Features
- Network-Based UPS Management: Integrates your 1kVA-3kVA online UPS directly into your network infrastructure via a standard RJ45 Ethernet port.
- Real-Time Remote Telemetry: Monitors vital system metrics, including voltage inputs, load distributions, and battery cell health, through a secure web browser interface.
- Automated Multi-Server Shutdown: Triggers structured, graceful operating system closures across multiple servers simultaneously during prolonged blackouts to prevent data corruptio
- Instant Alarm Notifications: Sends real-time SNMP traps and email notifications directly to network administrators when power faults occur.
- Robust Network Security: Supports essential data protection protocols, including HTTPs, SSL, and password authentication frameworks, to block unauthorized access.
- Plug-and-Play Smart-Slot Fitting: Slides directly into the existing intelligent slot on the back of the UPS, drawing power directly from the main chassis without external cables.
- Historical Log Tracking: Automatically documents thousands of power events, utility anomalies, and internal battery diagnostic results in an exportable log format.
Technical Specifications
| System Feature | Specification Details |
|---|---|
| Model Designation | EP-UPSUACASN |
| Interface Port | 1 x RJ45 10/100 Mbps Adaptive Ethernet Port |
| Supported UPS Range | EVI 1kVA to 3kVA (1000VA to 3000VA) Rack-mount Online UPS Models |
| Protocols Supported | SNMP v1/v2c/v3, HTTP, HTTPS, TCP/IP, UDP, DHCP, DNS, SMTP |
| Power Input Requirements | 12V DC (Sourced internally via the UPS Intelligent Smart-Slot) |
| Firmware Architecture | Upgradable embedded Linux flash memory core |
| LED Status Indicators | Onboard indicators for Power, Link Status, and Active Data TX/RX |
High-Utility Deployment Benefits
- Centralized Infrastructure Oversight: Allows small businesses and corporate IT teams to monitor remote network closets, edge locations, and branch office power nodes from a unified dashboard.
- Automated Troubleshooting Routines: Facilitates automated battery self-tests and lets administrators initiate remote UPS reboot sequences over the network.
- Proactive System Maintenance: Tracks battery aging indicators and power patterns, allowing technical teams to plan battery replacements long before an actual system failure occurs.
Frequently Asked Questions
Can this card be used with larger 6kVA or 10kVA EVI UPS models?
No. The EP-UPSUACASN is specifically engineered and pinned for the internal intelligent smart slots of EVI 1kVA, 2kVA, and 3kVA online double-conversion rack-mount UPS units. Larger models typically require a different high-capacity network management module configuration.
Do I need to purchase a separate software license for server shutdowns?
No. The card comes bundled with network shutdown software utilities that can be deployed across various connected servers. The application runs quietly in the background and listens for the shutdown command broadcast by the SNMP card during a power emergency.
How does this card handle IP address assignments?
The card is set to DHCP mode by default, allowing it to automatically pull an IP address from your local network router or server switch upon boot. Once connected, administrators can access the card’s web interface to assign a static IP address for reliable, long-term network tracking.
