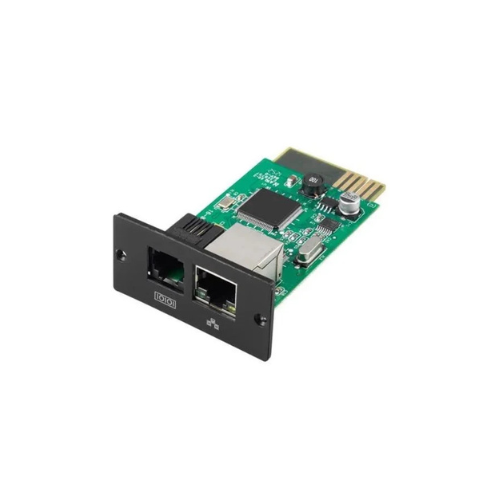

EVI SNMP Card for Online 10-40kVA 3 Phase UPS – EP-UPSY3ACASN
Key Features
Brand:EVI
Secure SNMP v3 + Gigabit HTTPS enterprise management
Per-phase real-time monitoring & predictive runtime
Plug-and-play for EVI 10–40kVA three-phase series
Unlimited ViewPower Enterprise + full REST API
2-Year Warranty with genuine EVI support
FAST DELIVERY
EVI SNMP Card for Online 10-40kVA 3-Phase UPS Product Guide
Comprehensive Product Overview
The EVI SNMP Card for Online 10-40kVA 3-Phase UPS (Model: EP-UPSY3ACASN) is an enterprise-class network management solution designed to bridge high-capacity three-phase power infrastructures directly with your network environment. Large-scale 3-phase online double-conversion UPS systems managing between 10kVA and 40kVA represent the primary lifeline for modern datacenters, healthcare computing nodes, and automated manufacturing floors. By slotting this intelligent network card into your power asset, standalone hardware transforms into an accessible network device, providing remote visibility and absolute operational oversight across your local area network (LAN) or wide area network (WAN).
Operating via a highly secure, embedded Linux web server, the EP-UPSY3ACASN provides granular, multi-phase tracking of critical operational metrics. Administrators can log into a single web dashboard to monitor individual phase input/output voltages, precise frequency fluctuations, current load percentages per phase, internal thermal metrics, and total remaining battery cell capacities. If a power anomaly occurs—such as a phase imbalance, commercial blackout, voltage surge, or system overload—the card instantly serves as an automated communication center. It dispatches Simple Network Management Protocol (SNMP) traps and real-time email alerts straight to your IT infrastructure teams, allowing them to troubleshoot before systemic failures bring down active business systems.
The core infrastructure protection benefit of this network management module is its ability to orchestrate multi-platform, automated graceful shutdowns. During extended blackouts when battery reservoirs approach dangerous low-voltage thresholds, the card communicates across the local network with background shutdown software deployed on your servers. It initiates a structured, orderly shutdown sequence across various client operating systems, safely closing enterprise databases, saving active virtualization hypervisors, and parking storage arrays to prevent hard-drive data corruption. Built in a robust internal card profile, it slides directly into the specialized intelligent slot on the back of EVI 10kVA, 20kVA, 30kVA, and 40kVA three-phase online UPS platforms.
Key Features
- Three-Phase Infrastructure Network Integration: Places your 10kVA to 40kVA three-phase UPS directly onto your enterprise network backbone via an adaptive RJ45 Ethernet port.
- Granular Multi-Phase Telemetry: Tracks real-time data for all phases simultaneously, including input/output voltage levels, phase tracking vectors, active power load distribution, and battery system health.
- Automated Cross-Platform Server Shutdown: Triggers simultaneous, coordinated, and graceful operating system shutdowns across multiple connected servers to protect critical data systems during critical battery depletion windows
- Instant Real-Time Alarms: Broadcasts proactive SNMP traps and multi-recipient email alerts the moment an electrical fault or system alert is logged by the UPS microprocessors.
- Enterprise-Grade Network Security: Features integrated security layers, including HTTPS, SSL encryption, and password validation protocols, to prevent unauthorized administrative overrides.
- Plug-and-Play Smart Slot Design: Fits directly into the existing intelligent slot on the 3-phase UPS rear panel, drawing power internally without requiring any external cables or transformer bricks.
- Comprehensive Data & Event Logging: Maintains an organized internal database documenting thousands of distinct historical utility errors, user commands, and battery performance indicators for auditing.
Technical Specifications
| System Feature | Specification Details |
|---|---|
| Model Designation | EP-UPSY3ACASN |
| Network Interface | 1 x RJ45 10/100 Mbps Self-Adaptive Ethernet Port |
| Supported UPS Core Range | EVI 10kVA, 20kVA, 30kVA, and 40kVA 3:3 Phase Online UPS Models |
| Protocols Supported | SNMP v1/v2c/v3, HTTP, HTTPS, TCP/IP, UDP, DHCP, DNS, SMTP |
| Power Requirements | 12V DC (Sourced internally via the UPS Intelligent Smart-Slot interface) |
| Operating Engine | Upgradable embedded Linux flash memory core |
| Onboard LED Indicators | Independent diagnostic lights indicating Power, Link Connection, and active Data Transmission |
High-Utility Deployment Benefits
- Centralized Disaster Recovery Oversight: Empowers IT infrastructure managers to track decentralized datacenter nodes, primary server cores, and critical 3-phase facility power from a single master dashboard.
- Automated Remote Maintenance: Enables technical personnel to initiate schedule-based battery capacity tests and remote system reboot routines directly over the network.
- Proactive Lifecycle Budgeting: Monitors chemical cell wear trends and ongoing utility line stability, allowing engineering teams to purchase replacement battery cabinets long before internal cells fail completely.
Frequently Asked Questions
Can this card be used with smaller single-phase 6kVA or 10kVA UPS systems?
No. The EP-UPSY3ACASN is pinned and programmed specifically to interpret complex data registers from EVI 10-40kVA three-phase online double-conversion UPS platforms. Single-phase systems use a different card module variant configured for single-phase metrics.
Do I need to buy extra user licenses to execute server shutdowns?
No. The enterprise SNMP management module includes a bundled network shutdown utility deployment package. This lightweight utility can be rolled out to all dependent servers on your local network to listen for emergency shutdown commands sent out by the card during grid emergencies.
How does this card obtain its initial IP address?
The card boots up in DHCP mode by default, meaning it will automatically grab an available IP address from your local network switch or router as soon as the network cable is connected. Once accessed, it is highly recommended to log into the web dashboard and configure a permanent static IP address for reliable network management.
