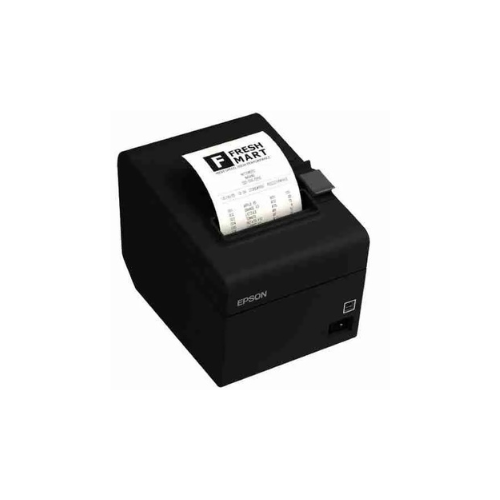

Epson TM-T20X Thermal Receipt Printer – C31CH26051A0
Key Features
Brand: Epson
Model: Epson TM-T20X (C31CH26051A0)
Printing Method: Thermal line printing
Print Speed: Up to 200mm/second
Print Resolution: 203 dpi x 203 dpi
Weight: Approximately 1.7 kg
Color: Black (UK version)
Power Supply: External AC Adapter (included)
Operating Temperature: 5°C to 45°C
Humidity: 10% to 90% (non-condensing)
FAST DELIVERY
1 Year Warranty
Ultimate Guide to Epson TM-T20X Thermal Receipt Printer C31CH26051A0
The Epson TM-T20X is a high-reliability, entry-level thermal receipt printer designed for bustling retail, hospitality, and small business environments. Combining fast print performance with an economical total cost of ownership, this model delivers clear transaction text, logos, and coupon borders effortlessly. It offers a dependable, low-maintenance hardware solution for point-of-sale systems that require consistent daily uptime without the ongoing costs of ink or ribbons.
Key Features and Specifications
This commercial-grade thermal receipt printer balances high-speed mechanics with flexible configuration options.
- High-Speed Printing: Delivers transaction data rapidly at speeds up to 200 millimeters per second.
- Thermal Printing Technology: Utilizes direct heat transmission to produce sharp text and graphics without ink or toner.
- Auto-Cutter Mechanism: Features a durable integrated automatic cutter rated for up to 1.5 million clean cuts.
- Paper Saving Function: Reduces top and bottom margin waste automatically to lower thermal paper roll consumption.
- Enhanced Connectivity: Includes built-in Serial and USB dual interfaces to integrate smoothly with standard POS terminal setups.
- Exceptional Reliability: Boasts a mechanism life of 15 million lines and a printhead lifespan of 100 kilometers.
- Versatile Placement options: Supports horizontal desktop placement or space-saving vertical wall-mount installations using internal brackets.
High-Performance Direct Thermal Engineering
The TM-T20X solves the problem of slow checkouts and messy ribbon jams by utilizing advanced direct thermal printhead technology. Traditional impact or inkjet register printers require tracking cartridge levels and feature moving ribbons that stretch, fade, and snap under heavy use.
This model applies targeted electrical heat directly onto chemically treated thermal paper rolls. This design creates high-contrast black receipts instantly, keeping checkout lines moving quickly during peak business hours.
Long-Term Durability and Asset Efficiency
The internal mechanics focus heavily on survival within harsh commercial landscapes like restaurant kitchens or busy checkout lanes. The heavy-duty automatic paper cutter handles up to 1.5 million crisp cuts before requiring replacement, minimizing paper jams.
Cost efficiency is further enhanced by the system built-in automatic paper-saving feature. This tool shrinks the blank space at the top and bottom of each receipt, reducing paper roll expenses by up to 30 percent over time without compromising readability or font sizes.
Initial Setup and Driver Configuration Steps
Deploying your hardware printer into your existing point-of-sale system takes only a few quick moments.
Physical Media and Power Installation
- Place the printer on a flat workspace and connect the built-in AC power adapter to a standard electrical outlet.
- Open the top casing cover by pressing the integrated physical release lever on the side panel.
- Drop a fresh 80mm thermal paper roll into the internal reservoir, ensuring the paper unrolls from the bottom up.
- Pull a small tab of paper out past the front lip and click the top door cover firmly back into position.
Connecting to the POS System
- Link the printer interface ports to your computer or cash drawer using the packaged USB or Serial cables.
- Download the official Epson Advanced Printer Driver from the official support website onto your host desktop.
- Run the installation setup software as an administrator to assign the appropriate communication channel.
- Execute a test print command through your operating system panel to confirm active data parsing and correct line alignment.
Frequently Asked Questions
Does the Epson TM-T20X require separate ink cartridges?
No, the printer uses direct thermal technology which requires zero ink, toner, or ribbon replacements. The only ongoing operational requirement is standard, heat-sensitive thermal receipt paper rolls.
Can I connect a standard electronic cash drawer directly to this printer?
Yes, the rear connection panel includes a dedicated DK port. This physical port allows the printer to send an automated electrical pulse that pops open your cash drawer whenever a transaction script executes a receipt print command.
What size paper rolls does this specific model support?
The printer is engineered to accept industry-standard thermal paper rolls with a width of 80 millimeters. It features a deep internal paper bay that accommodates large-diameter rolls, reducing the need for frequent replacement interventions.
Is the auto-cutter capable of performing partial cuts?
Yes, the integrated auto-cutter mechanism is factory-configured to execute a partial cut. This leaves a tiny paper bridge in the center of the receipt, allowing cashiers to easily detach the receipt by hand without it falling to the floor. [1]
