Cudy POE200 30W Gigabit PoE+ Injector SEO Optimized Product Guide
Product Overview

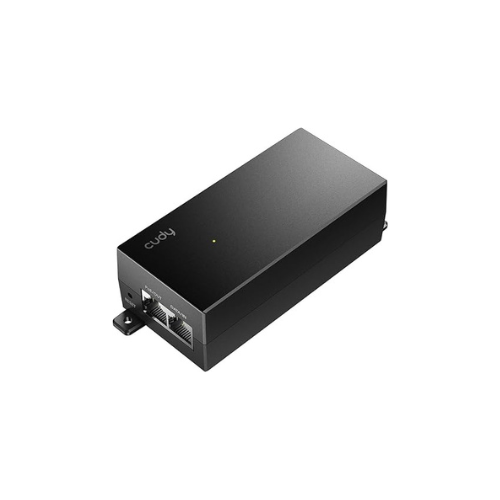

The Cudy POE200 is a high-performance 30W Gigabit PoE+ Injector designed to provide both high-speed data and electrical power to your network devices through a single Ethernet cable. This adapter is an ideal solution for upgrading non-PoE network infrastructures to support modern, power-hungry hardware without the need for additional electrical wiring. By delivering up to 30 Watts of power, it ensures stable and consistent operation for bandwidth-intensive devices such as 4K surveillance cameras and high-speed wireless access points.
Engineered for efficiency, the POE200 eliminates the clutter of bulky external power bricks by featuring an integrated internal power supply. Its compact, wall-mountable design allows for clean and professional installations in diverse environments, from home offices to small business surveillance grids. This mid-span injector offers a cost-effective and reliable method to power remote devices located up to 100 meters away.
Key Features
- High-Speed Gigabit Connectivity: Supports 10 100 1000 Mbps Base-T applications, providing full duplex Ethernet speeds of up to 2 Gbps.
- 30W Power Delivery: Complies with IEEE 802.3af/at standards to deliver a maximum of 30W output, suitable for PoE+ devices.
- Auto-Sensing Technology: Automatically detects the power requirements of connected devices to ensure safe and efficient delivery while protecting legacy non-PoE hardware.
- Integrated Power Supply: Features a built-in AC to DC converter, requiring only a standard power cord and no external power adapter brick.
- Comprehensive Protection: Includes robust safety features such as surge protection, ESD protection, overvoltage protection, and short-circuit protection.
- Extended Range: Facilitates reliable power and data transmission over Category 5e or higher cabling for distances up to 100 meters (328 feet).
Technical Specifications
- Interfaces: 1x RJ45 Gigabit Ethernet Input port and 1x RJ45 Gigabit PoE+ Output port.
- PoE Standard: IEEE 802.3af and IEEE 802.3at compliant.
- Power Input: 100 to 240V AC, 50/60 Hz at 0.5A.
- Output Voltage: 48V to 54V DC.
- Reliability Ratings: ESD protection up to 6kV Contact and 8kV Air; Surge protection up to 4kV.
- Dimensions: Approximately 121mm x 50mm x 36mm.
- Environmental Conditions: Operating temperature range of -10 to 45 degrees Celsius (14 to 113 degrees Fahrenheit).
Search Optimization Identifiers
- Primary Search Phrase: Cudy POE200 30W Gigabit PoE+ Injector
- Secondary Search Phrases: 30W PoE adapter, 1000Mbps PoE injector, wall-mount PoE injector, IEEE 802.3at injector, gigabit ethernet power injector.
Search Snippet Summary
Upgrade your network with the Cudy POE200 30W Gigabit PoE+ Injector. This wall-mountable adapter provides high-speed 1000Mbps data and 30W power over a single cable, perfect for IP cameras and WiFi access points.
Frequently Asked Questions
Is the Cudy POE200 compatible with older PoE devices?
Yes. The auto-sensing technology is backward compatible with IEEE 802.3af (15.4W) devices, ensuring they receive the correct amount of power safely.
How do the LED indicators work?
The device features LED indicators for both power input and PoE output, allowing users to verify at a glance that the adapter is receiving AC power and successfully delivering power to the connected device.
What is required for installation?
The POE200 is a plug-and-play device requiring no software configuration. You simply need two Ethernet cables (one from your switch/router and one to your PoE device) and a standard power outlet.
