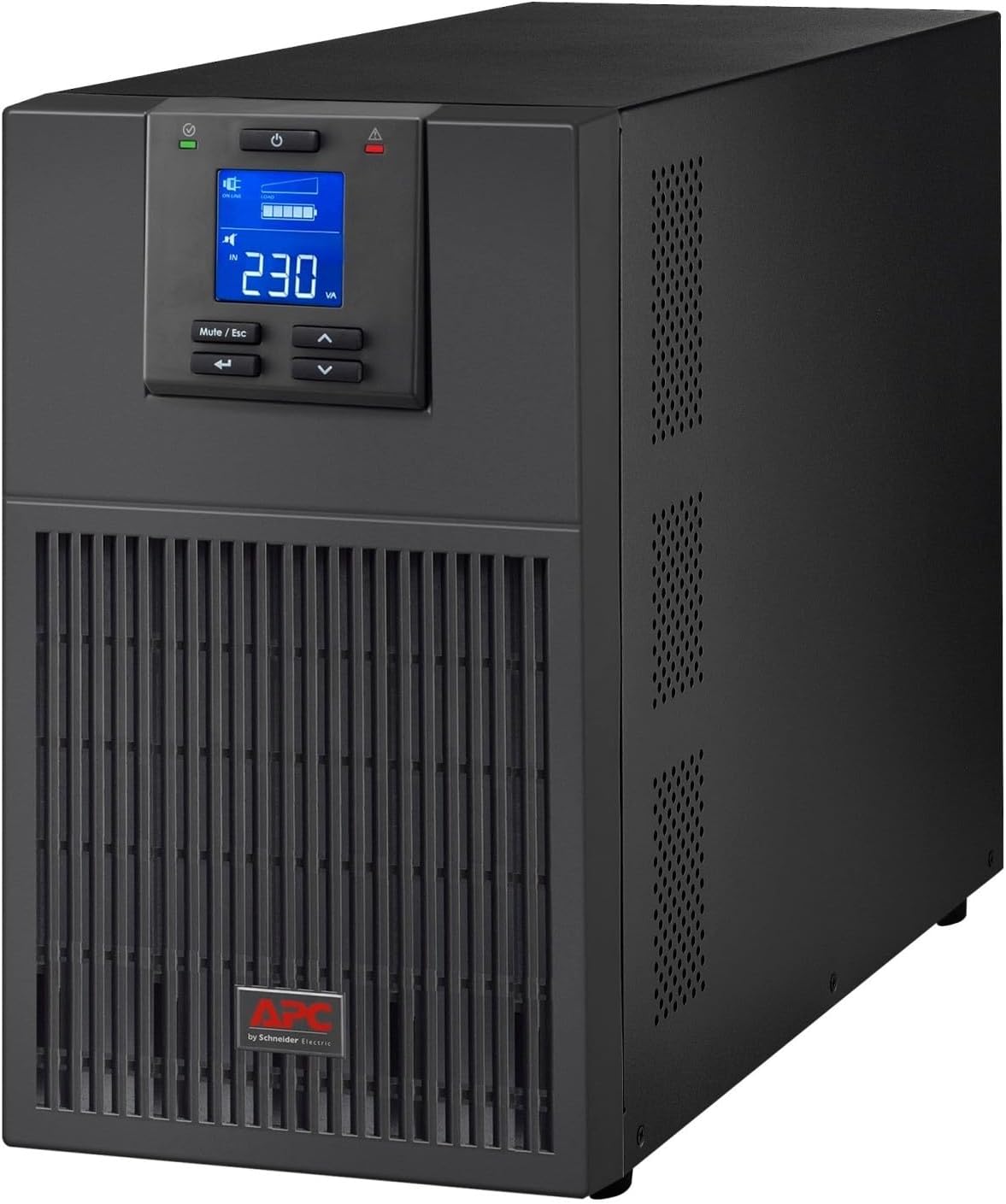

APC UPS SRV 3000VA 230V SRV3KI
Key Features
Brand:APC
Model: SRV3KI
Capacity: 3000 VA / 2700 Watts
Topology: Double-Conversion On-Line
Input Voltage: 230V
Input Connection: IEC 320 C20
Output Voltage: 230V
Waveform Type: Pure Sine Wave
Battery Type: Sealed Lead-Acid
APC Easy UPS SRV3KRIRK 3000VA Rackmount Technical Guide
The APC Easy UPS SRV3KRIRK is a commercial-grade, high-density online double-conversion uninterruptible power supply (UPS) engineered to deliver robust power protection for critical infrastructure, data center server racks, telecom hubs, and medical edge-computing networks. Providing 3000VA of clean capacity packaged into a 2U rackmount layout with an included structural rail kit, this online topology completely isolates sensitive enterprise loads from erratic grid fluctuations. This comprehensive guide covers key product features, core technical specifications, and hardware deployment steps.
electrical shielding workstation optimized to convert raw utility alternating current (AC) into stabilized direct current (DC), then instantly back into pure sinusoidal AC wave power. This online double-conversion loop completely eliminates transfer switch latency times during blackouts while actively filtering toxic voltage sags, surges, brownouts, and high-frequency electrical line noises. It features an integrated smart diagnostic LCD panel, clean generator compatibility, an expandable smart slot interface, and a heavy-duty mechanical rack rail bundle. For a detailed performance structural breakdown and troubleshooting configuration, review the full guide below.
Premium Design and Key Features
Pure Online Double-Conversion Topology
The core power management system operates on high-efficiency online double-conversion mechanics. Because the internal inverter circuit continuously feeds the critical outbound server loads directly from the internal DC battery bus rail, the physical transfer time during a building blackout is exactly 0 milliseconds. This zero-latency switchover guarantees that mission-critical storage blades and industrial automation terminals never drop frame connections or experience premature hardware reboots.

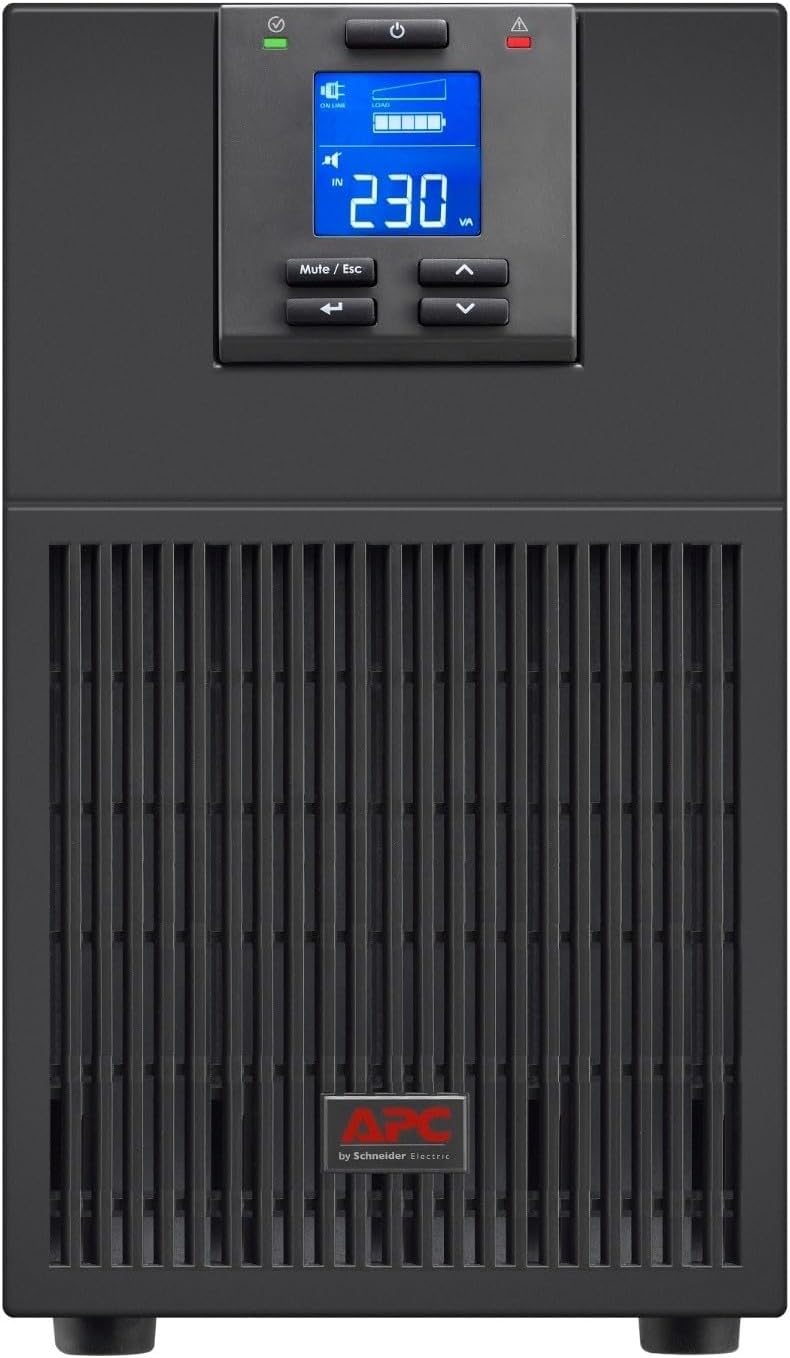

Intelligent High Definition LCD Interface Panel
An advanced, intuitive diagnostic liquid crystal display dashboard anchors the front bezel layout. This visual monitor screen gives data center operators instant visibility into real-time input voltage parameters, outbound load wattage percentages, actual battery runtime reserves, active power factor tracking, and distinct internal fault alarm strings, allowing for rapid diagnostics without requiring localized console network cables.
Eco Mode Efficiency Optimization Feature
Equipped with an advanced firmware operating algorithm, the hardware features a user-selectable Eco Mode state toggle. When local utility grid power is tracked as highly stable and within tight voltage bounds, the system automatically routes raw utility power around the double-conversion blocks via an internal static bypass circuit, lifting operating performance up to 95% efficiency to dramatically lower cooling costs and building power utility expenses.
Rugged 2U Rack Framework and Rail Kit Inclusion
The heavy-duty metal chassis is engineered into a standardized 2U rackmount form factor designed to slide smoothly into conventional 19-inch server cabinet frame cages. This specific SKU configuration comes pre-bundled with a complete matching physical rail kit setup. This structural mounting hardware safely supports the heavy weight distribution of the internal valve-regulated lead-acid (VRLA) cells, saving administrators the extra step of purchasing structural rail brackets independently
Technical Specifications
- Apparent Output Capacity: 3000 Volt-Amps (VA) High-Density Performance Floor
- Actual Real Output Power: 2400 Watts (W) Continuous True Power Capability
- Topology Sub-System: True Online Double-Conversion Digital Processing
- Output Waveform Geometry: Pure Sinusoidal Alternate Current Wave Output
- Output Voltage Matrix: Configurable default 230V (supports 220V, 240V calibration ranges)
- Input Voltage Spectrum: Wide 110V to 300V range at half load; 160V to 280V range at full load
- Efficiency Performance: Up to 88% Online Mode; Up to 95% automated Eco Mode tracking

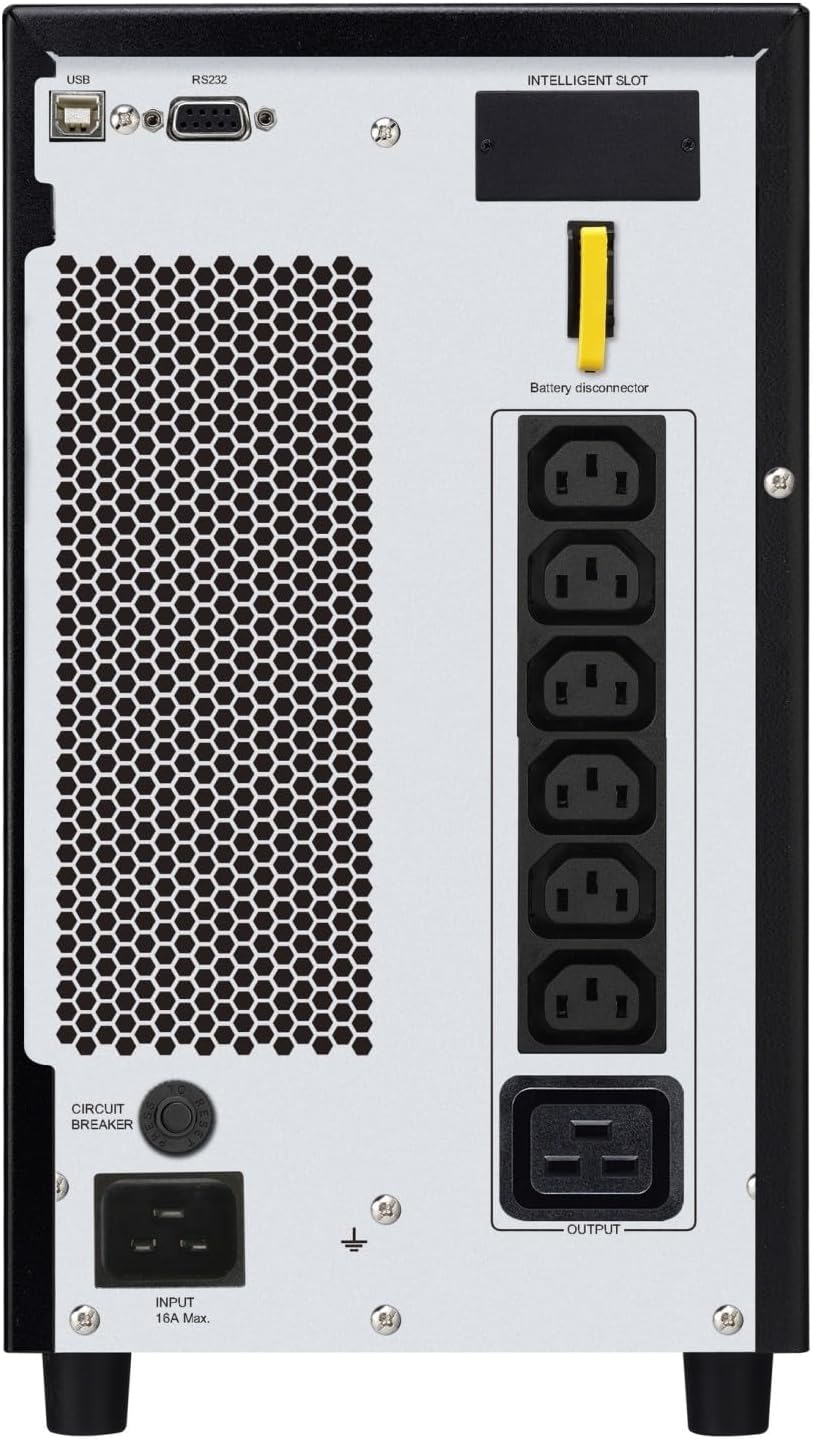

- Outbound Output Sockets: 6 x IEC 320 C13 outlets, 1 x IEC 320 C19 outlet slot
- Input Connection Hook: Standard IEC 320 C20 input connector plug array
- Battery Cells Chemistry: Laminated Valve-Regulated Lead-Acid (VRLA) Maintenance-Free Cells
- Diagnostic Sound Profile: Automated audible alarms toggled for low battery, overloads, or internal fault states
- Chassis Dimension Index: 86mm Height (2U) x 438mm Width x 615mm Depth; Weight: 27.6 Kilograms
