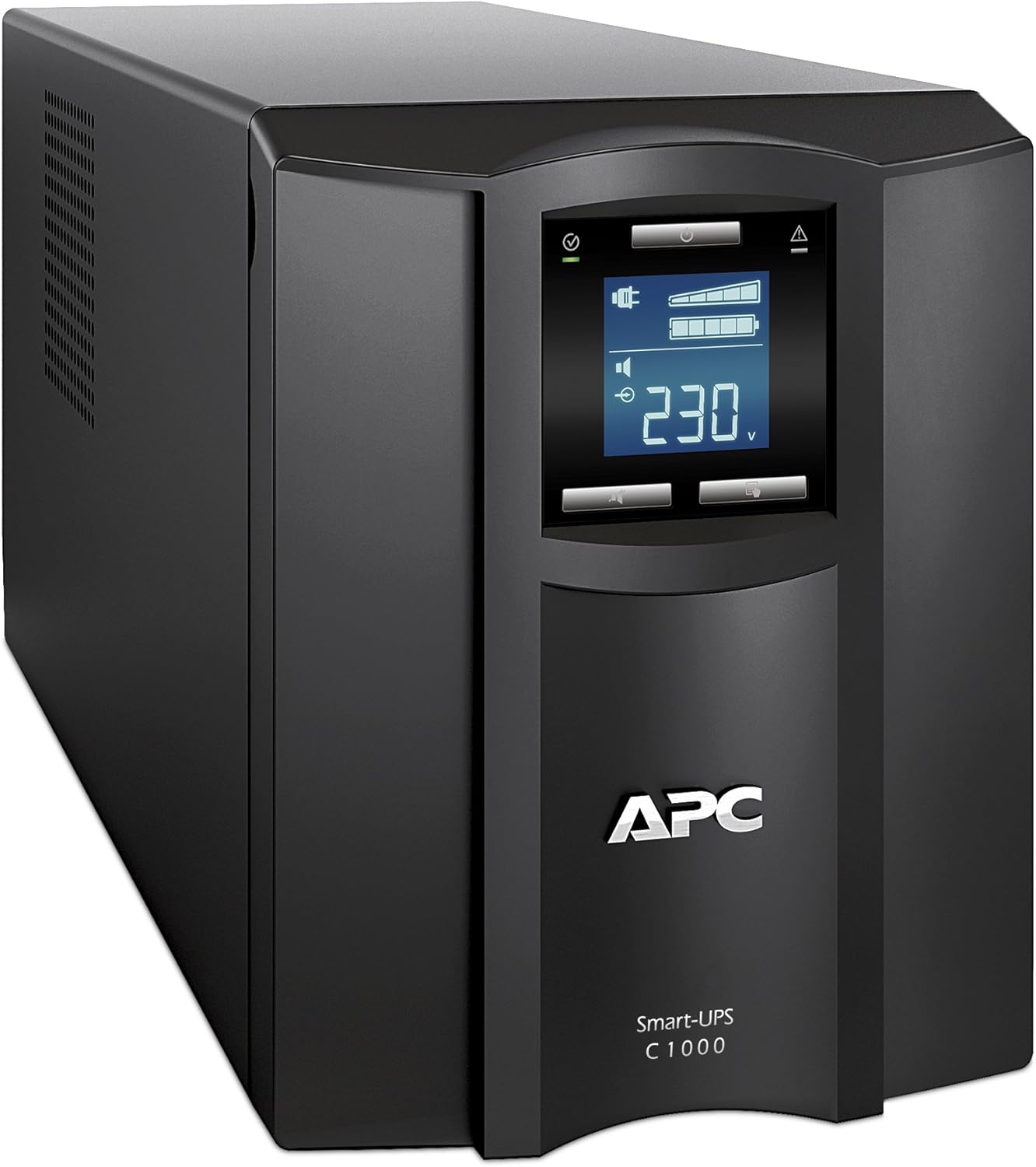

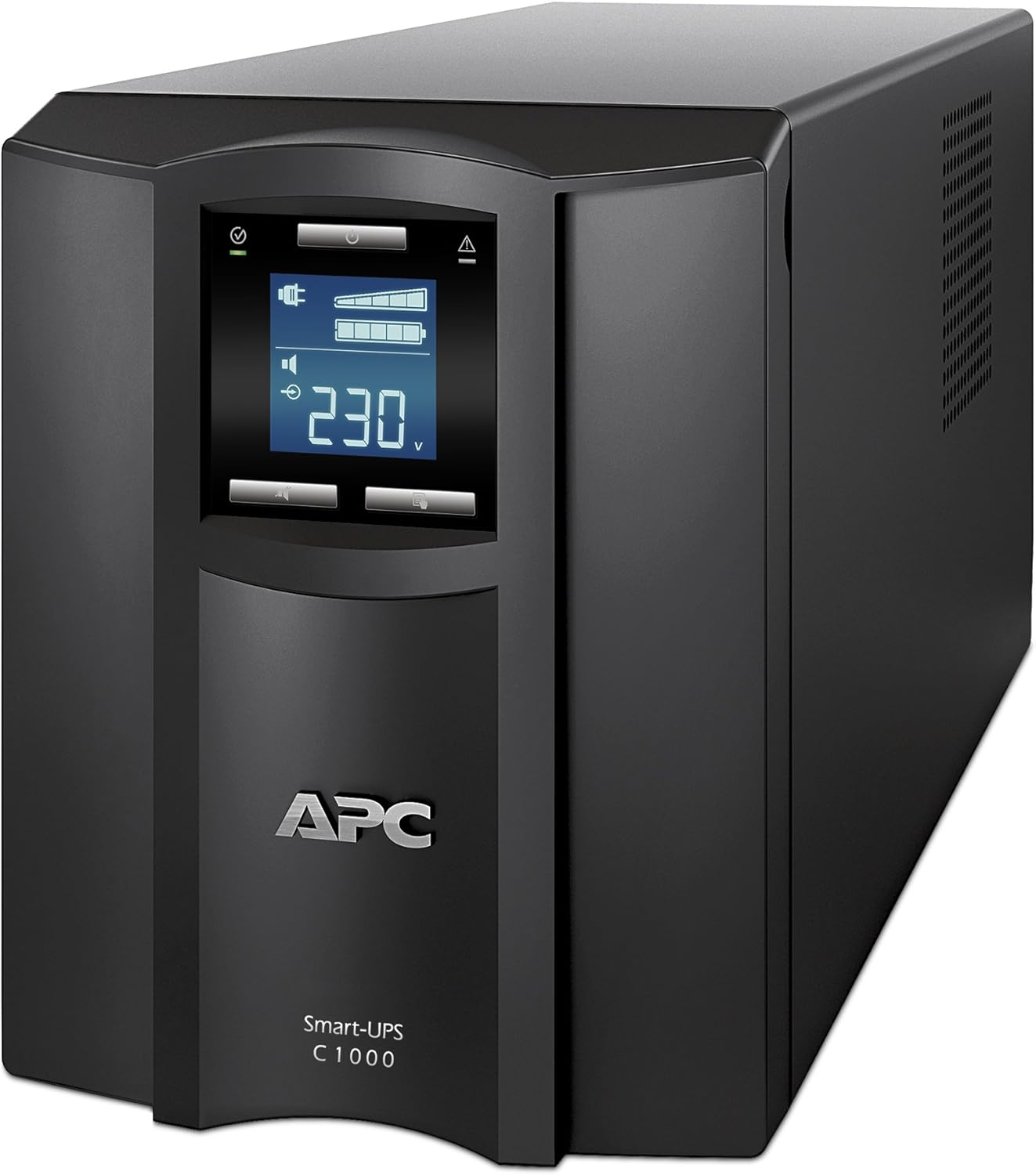

APC SMC1000I Smart-UPS C 1000VA LCD 230V UPS
Key Features
Brand: APC
Cold-start capable
Green mode
High online efficiency
LCD Status Display
Pure sine wave output on battery
Temperature-compensated battery charging
Ultimate Guide to APC Smart-UPS C 1000VA LCD 230V (SMC1000I)
The APC Smart-UPS C 1000VA (SMC1000I) is an enterprise-grade, tower-style power protection unit designed specifically for entry-level servers, network switches, point-of-sale (POS) systems, and high-performance business workstations. Featuring line-interactive topology and an intelligent LCD interface, this unit delivers a pure sine wave output on battery. It provides a robust, low-maintenance hardware safeguard that protects sensitive corporate infrastructure from data corruption, equipment degradation, and unexpected network downtime.
Key Features and Specifications
This server-class power backup system combines advanced digital telemetry with pristine electrical wave reproduction.
- 1000VA Power Capacity: Provisions up to 600 Watts of clean electrical energy to handle server and network loads.
- Pure Sine Wave Output: Simulates utility grid power perfectly while on battery to ensure total hardware compatibility with active Power Factor Corrected (PFC) power supplies.
- Automatic Voltage Regulation (AVR): Automatically corrects low-frequency sags and high-voltage surges without draining battery cells
- Eight Dedicated IEC C13 Outlets: Provides extensive connectivity slots for multi-server racks and network appliance arrays.
- Multifunction LCD Status Console: Displays clear, real-time metrics including power load bars, battery runtime minutes, and efficiency percentages.
- SmartConnect Cloud Monitoring: Features an integrated network port that allows remote cloud-based status tracking from any web browser.
- USB and Serial Port Bridges: Pairs with PowerChute Business Edition software to orchestrate automated, graceful server shutdowns.
- Green Mode Efficiency: Bypasses unused internal electrical components automatically during stable grid conditions to lower office thermal output and energy bills.
Pure Sine Wave Power and Server Infrastructure Protection
The SMC1000I solves the problem of server instability and power supply damage caused by cheap battery backups. Standard backup bars output a blocky, simulated stepped sine wave when power cuts out. While basic office monitors can handle this, modern enterprise servers equipped with Active PFC power supplies will often reject a simulated wave, causing instant system resets or permanent component stress.
This Smart-UPS model delivers a flawless pure sine wave output on battery. Whether your grid power experiences a brief fluctuation or a total blackout, your server microchips receive a smooth, continuous electrical current. Wired network integrity is further managed by the system’s built-in automatic voltage regulation (AVR), which balances voltage spikes or brownouts without touching the internal battery cache, ensuring your battery reserves remain fully charged for true emergency situations
Simplified Cloud Telemetry and Automated Management
The hardware communication design features advanced data bridges built to streamline multi-site IT management.
- APC SmartConnect Port: Connects your UPS directly to a secure cloud monitoring dashboard via a standard network cable, allowing IT teams to check battery health and view active alerts remotely.
- PowerChute Business Edition Link: Integrates seamlessly with leading operating systems and virtual machines via USB or serial cables, triggering automated file saves and safe operating system shutdowns before power runs out
Step-by-Step Hardware Installation and Calibration
Setting up your server-grade power defense network requires only a few minutes to configure the internal battery loop.
Battery Activation and Positioning
- Stand the tower unit upright on a flat, solid floor or server tray surface that leaves ample air clearance around the cooling vents

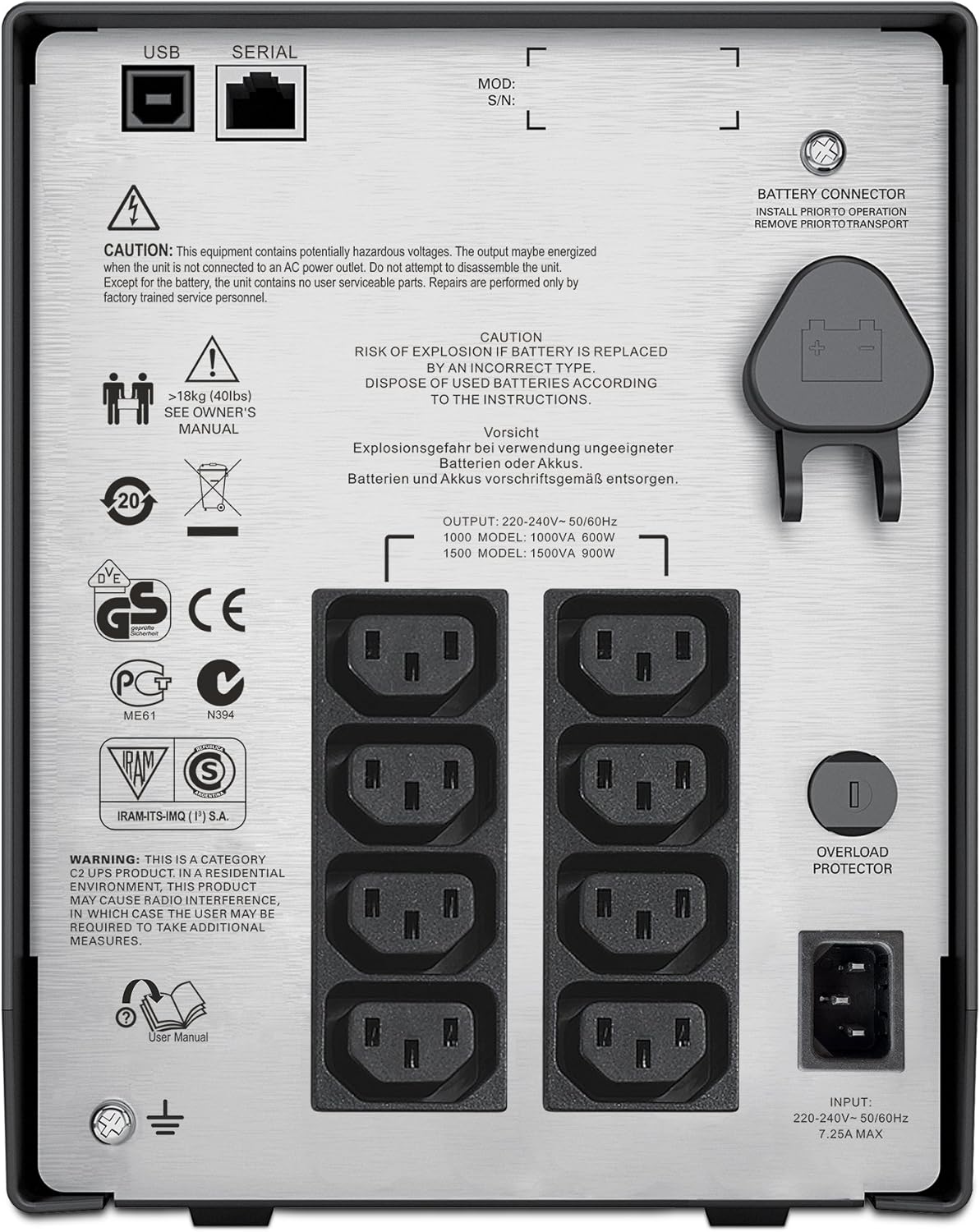

- Locate the heavy-duty plastic battery connector plug on the rear back panel of the chassis.
- Push the connector block firmly inward and press it flush into the housing to snap the internal heavy-duty fuse link into place.
- Connect the main power input cord from the UPS into a verified, grounded 230V wall outlet.
Charging and System Initialization of the APC SMC1000I
- Leave the unit plugged into wall power for at least eight hours to let the internal cells reach peak charge depth before connecting any live equipment
- Connect your servers, network switches, or NAS storage arrays to the rear IEC C13 outlets using standard jumper cords.
- Press the physical power button on the front panel; the LCD screen will illuminate, indicating the system is online and filtering power.
Frequently Asked Questions
Can I plug standard office laser printers into this Smart-UPS model?
No, you must never connect high-draw laser printers or motorized equipment to a standard server-class UPS Laser printers use heavy fuser heating elements that pull sudden, massive spikes of electricity when heating up. These sudden current spikes will instantly exceed the 600-Watt safety limit of this unit, triggering an immediate overload shutdown to protect the internal inverter.
What information can I see on the front LCD screen?
The integrated LCD screen serves as a robust diagnostic dashboard. By tapping the physical navigation buttons, you can instantly read your current electrical load in Watts, your remaining battery runtime in minutes based on that load, incoming utility voltage, battery capacity percentage, and active system error codes.
Do I have to pay an ongoing subscription fee for the SmartConnect cloud feature?
No, the built-in APC SmartConnect cloud monitoring features a free entry-tier account framework. It allows you to monitor your network device health from a remote web dashboard, receive automatic firmware upgrade alerts, and get proactive notifications when the internal battery cells are approaching their end-of-life cycle.
How often should the internal battery modules be replaced?
The internal sealed lead-acid battery cells are engineered to provide reliable backup protection for approximately three to five years under standard corporate operating temperatures. When the battery eventually degrades, the front LCD console will illuminate a replace-battery indicator and emit a recurring alert tone, signaling it is time to purchase a fresh replacement cell block.
