APC EASY UPS BV 800VA, AVR, Universal Outlet, 230V
Key Features
Brand: APC
Flexible design for both high and low powered devices
Maximum power output 800 VA/450 W
4 x universal, multi-socket battery backup outlets.
Reliable surge protection – protects your valuable electronic devices against damaging lightning, surges and spikes
Includes: APC Back UPS BV, user manual
Ultimate Guide to APC Easy UPS BV 800VA Line-Interactive UPS (BV800I-MSX)
The APC Easy UPS BV 800VA is a high-utility, reliable power protection unit designed to safeguard home offices, retail setups, and electronic workstations from unexpected power disruptions. Featuring built-in automatic voltage regulation (AVR) and universal physical outlet slots, this compact unit keeps your critical equipment running during blackouts and brownouts. It offers a low-maintenance hardware safeguard for internet routers, computers, network-attached storage (NAS) arrays, and point-of-sale (POS) terminals
Key Features and Specifications
This line-interactive battery backup system combines robust electrical filtration with multi-device protection
-
- 800VA Power Capacity: Provides up to 450 Watts of clean electrical energy to handle essential electronic devices.
- Automatic Voltage Regulation (AVR): Corrects low-frequency brownouts and high-voltage surges automatically without draining the battery
- Four Universal Outlets: Features flexible physical socket slots that accept diverse global power plug shapes
- Line-Interactive Topology: Switches power paths inside a fraction of a second to prevent electronic data corruption or hardware resets
- Wall-Mountable Chassis: Outfits spaces easily via integrated keyhole slots on the base panel for neat mounting behind desks or inside server frames
- Intelligent Battery Management: Optimizes battery charging parameters dynamically to maximize the operational lifespan of the internal cells
- Cold-Start Functionality: Powers up attached devices temporarily directly from the internal battery cache during an extended total power outage
Intelligent Voltage Regulation and Component Safety
The BV 800VA solves the problem of premature hardware failure and random system reboots caused by bad grid utility lines. Standard backup battery bars simply wait for power to cut out completely before stepping in
This model features advanced Automatic Voltage Regulation systems . The hardware continuously tracks changing incoming utility power metrics . If grid voltage dips too low or spikes too high, the internal transformer trims or boosts the current to safe operational thresholds, allowing your sensitive computer chips to run smoothly without stressing the battery array
Streamlined Device Integration and Utility Space Design
The physical framework is optimized to integrate seamlessly into crowded home entertainment hubs and compact corporate offices
-
- Universal Socket Interfaces: Accommodates standard European, British, and global power plug styles, removing the need for cheap, risky external plastic plug adapters
- Stealth Alert Indicators: Uses low-profile physical LED lights and audible alarm buzzers to let users know when the grid power transitions to battery backup mode
Step-by-Step Initial Hardware Installation and Startup
Deploying your backup power source takes only a few quick moments using simple physical alignment steps
Battery Activation and Placement
-
- Unpack the unit and place the chassis on a flat floor surface away from excessive moisture, heat, or direct sunlight

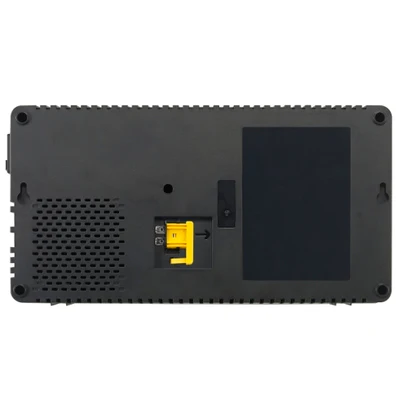

- Flip the chassis upside down to expose the bottom battery disconnect connector block
- Push the bright yellow plastic connector tab firmly into the slot to bridge the internal battery cells with the core electrical circuits
- Turn the device upright and plug the primary power cord into a verified, grounded wall outlet
Initial Initialization and Device Load
-
- Let the unit charge for a full eight hours before attaching any sensitive desktop computer gearhis ensures the internal battery cells reach their maximum capacity rating
- Plug your primary internet modem, router, or desktop computer into the universal back-panel slots
- Press the physical power button on the top panel; the status LED will glow a solid green, signaling active power filtering
Frequently Asked Questions
How long will this APC 800VA UPS keep my devices running during a blackout?
The exact runtime depends completely on the total power draw of your connected devices For a basic setup consisting of an internet modem and a Wi-Fi router, the unit can sustain internet connectivity for approximately 60 to 90 minutes. For a standard office desktop computer and screen, it offers roughly 10 to 15 minutes of backup power, allowing you to save your data files and shut down your system safely
Can I plug a high-capacity laser printer or office refrigerator into this unit?
No, you must avoid connecting motorized appliances or heavy laser printers to standard battery backup bars Laser printers use high-power heat elements that draw massive surges of current, which can instantly overload the 450-Watt threshold of this UPS and trip its built-in safety circuit breaker
What should I do if the unit emits a continuous, unbroken buzzing tone?
A continuous tone typically indicates that the total load from your attached devices has broken past the maximum power capacity of the unit. Unplug high-power accessories or secondary monitors from the backup ports until the overload light clears and the system stabilizes
Is the internal battery user-replaceable on this specific model?
The internal sealed lead-acid battery cells are engineered to provide reliable protection for roughly three to five years depending on your local temperature environment and blackout frequency. When the battery cells eventually reach their end of life, you should contact an authorized APC service provider for a professional replacement cell
